HoloToolkit/unity远程实时传输视频_unity实时录像上传

-1 holotoolkit 客户端与服务器架构的建立

0  微软Hololens开发包MixedRealityToolkit-unity

https://github.com/Microsoft/MixedRealityToolkit-Unity/releases

https://github.com/microsoft/MixedRealityToolkit-Unity.

0-1  Windows Mixed Reality documentation

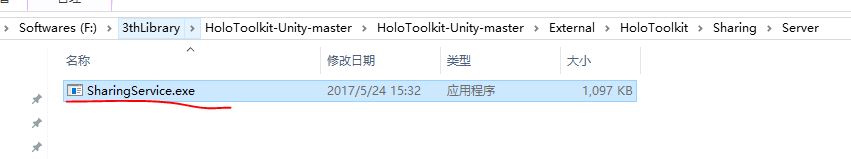

1， 服务器

windows+R

cmd

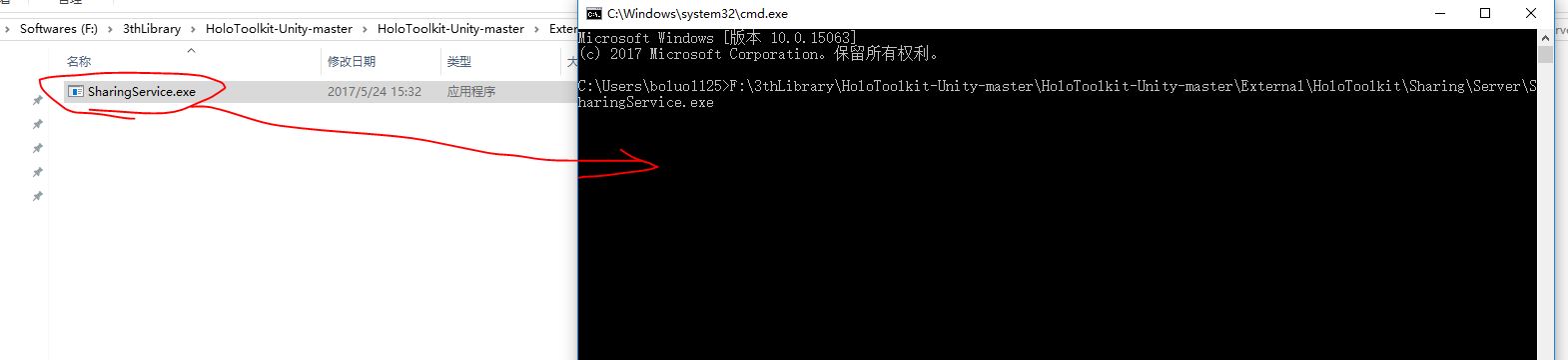

把x.exe拖入到黑窗口中

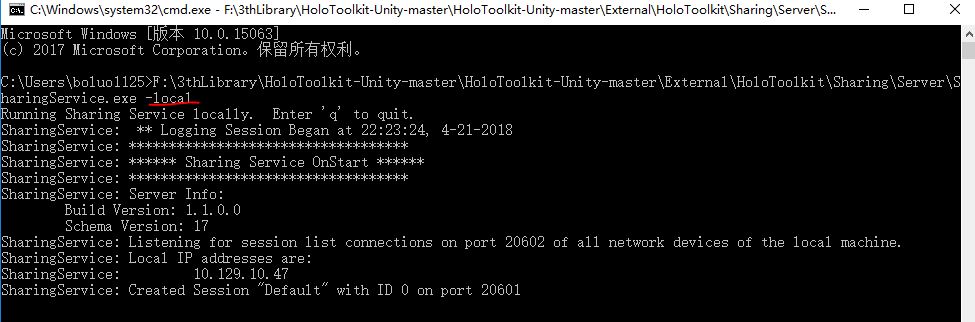

再输入 -local

则服务器会运行起来

2 local客户端

a,导入 HoloToolkit.unitypackage

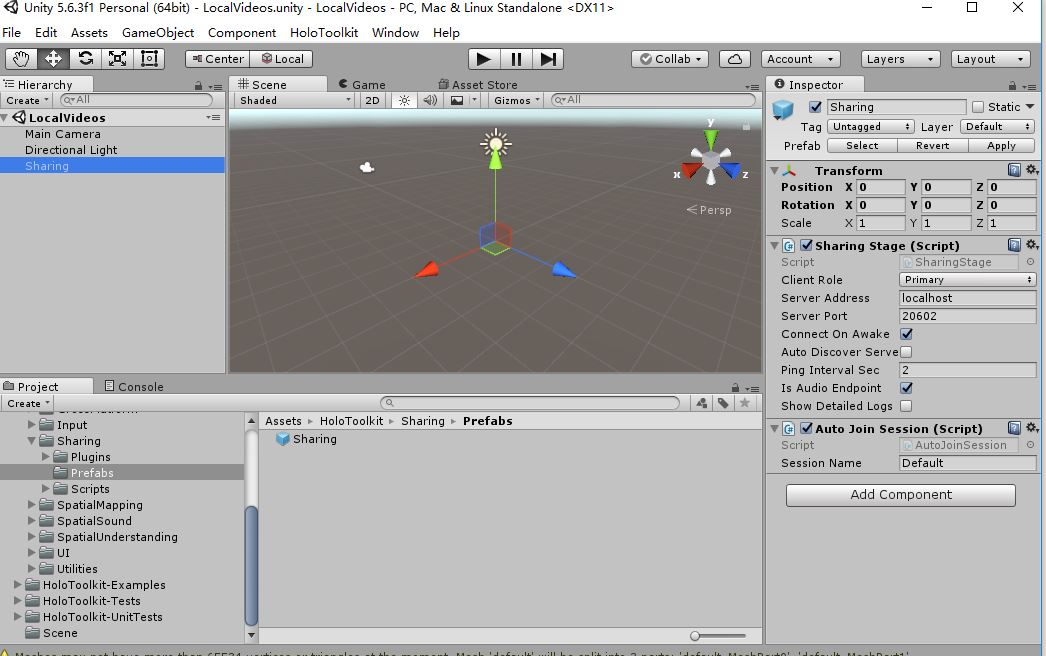

b,拖入预制体sharing

c 添加三个脚本

打开并显示相机  cameraView.cs

A  devices[0].name  或 devices[i].name

B 视频传输时编码和解码都用的是unity自带的功能

（Texture2D viewTexture）

 cameraView.viewTexture.EncodeToJPG();

 viewTexture.LoadImage(currentFrame);

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class cameraView : MonoBehaviour {

    public GameObject cameraViewPlan;

    public static Texture2D viewTexture;
    public static WebCamTexture viewTextureCamera;

    // Use this for initialization
    void Start () {

        WebCamDevice[] devices = WebCamTexture.devices;
        viewTextureCamera = new WebCamTexture("Creative GestureCam", 1280, 720, 30);
        viewTexture = new Texture2D(viewTextureCamera.width, viewTextureCamera.height);
        viewTextureCamera.Play();


    }

	// Update is called once per frame
	void Update () {


        viewTexture.SetPixels(viewTextureCamera.GetPixels());
        viewTexture.Apply();

        GetComponent<Renderer>().material.mainTexture = viewTexture;
    }
}

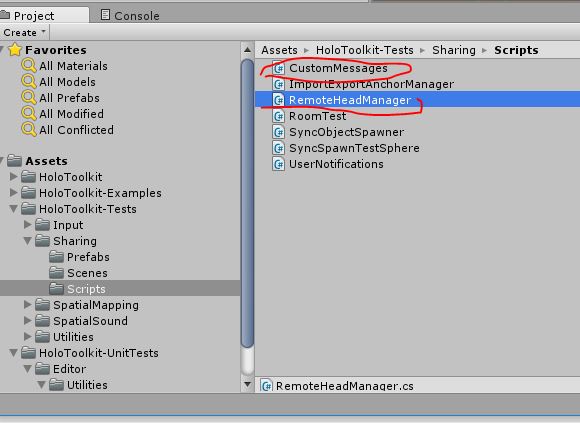

下面两个脚本只要修改这两个脚本就好

LocalCustomMessagesManger.cs

发送数据

 public void SendMessage()
        {
            // If we are connected to a session, broadcast our head info
            if (serverConnection != null && serverConnection.IsConnected())
            {
                // Create an outgoing network message to contain all the info we want to send
                NetworkOutMessage msg = CreateMessage((byte)TestMessageID.StringMessageID);

                //send video
                byte[] currentColorFrameByteArray = cameraView.viewTexture.EncodeToJPG();

                msg.Write(currentColorFrameByteArray.Length);
                msg.WriteArray(currentColorFrameByteArray, (uint)(currentColorFrameByteArray.Length));
                //AppendTransform();调用这个函数就可以继续传值了

                // Send the message as a broadcast, which will cause the server to forward it to all other users in the session.
                serverConnection.Broadcast(
                    msg,
                    MessagePriority.Immediate,
                    MessageReliability.UnreliableSequenced,
                    MessageChannel.Avatar);
            }
        }

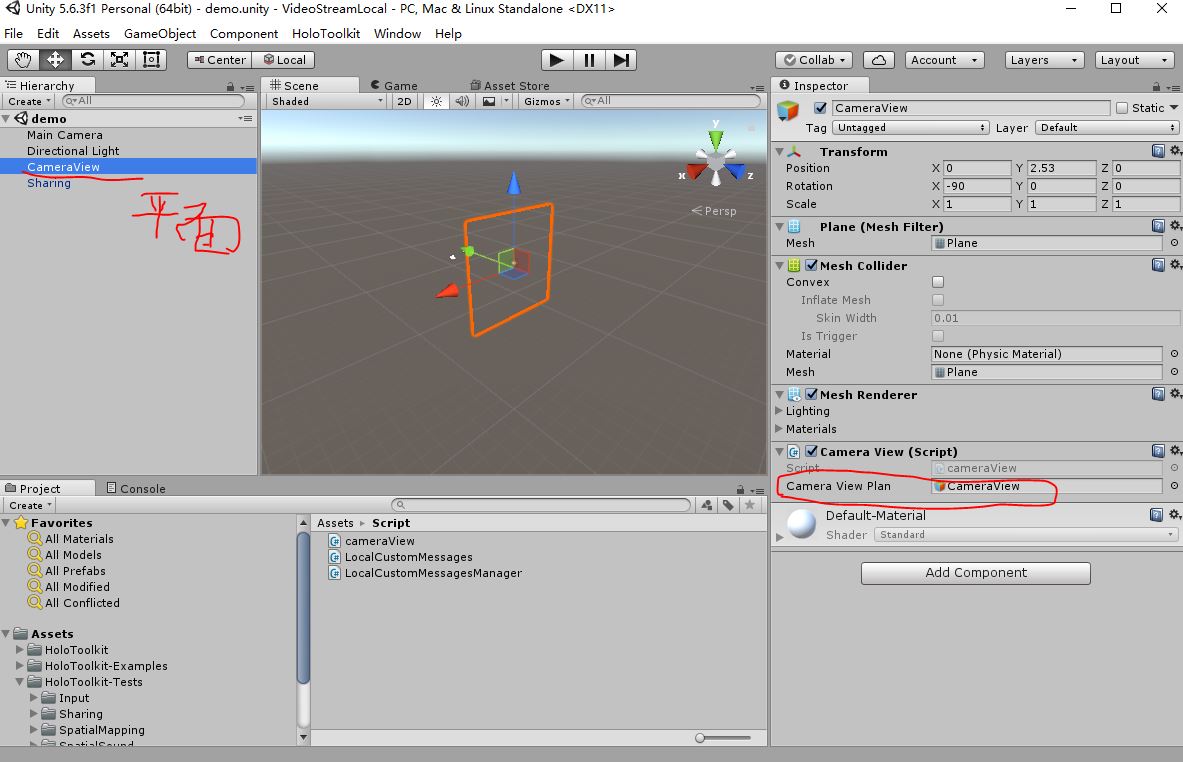

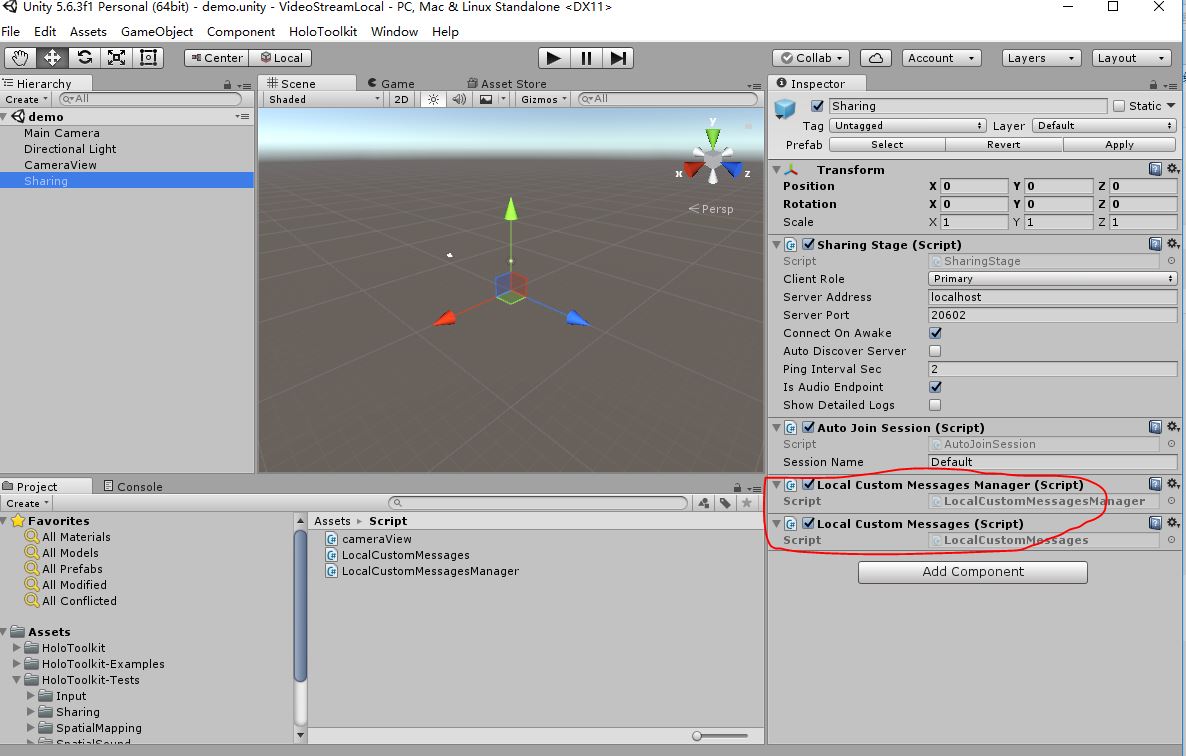

d, 挂脚本

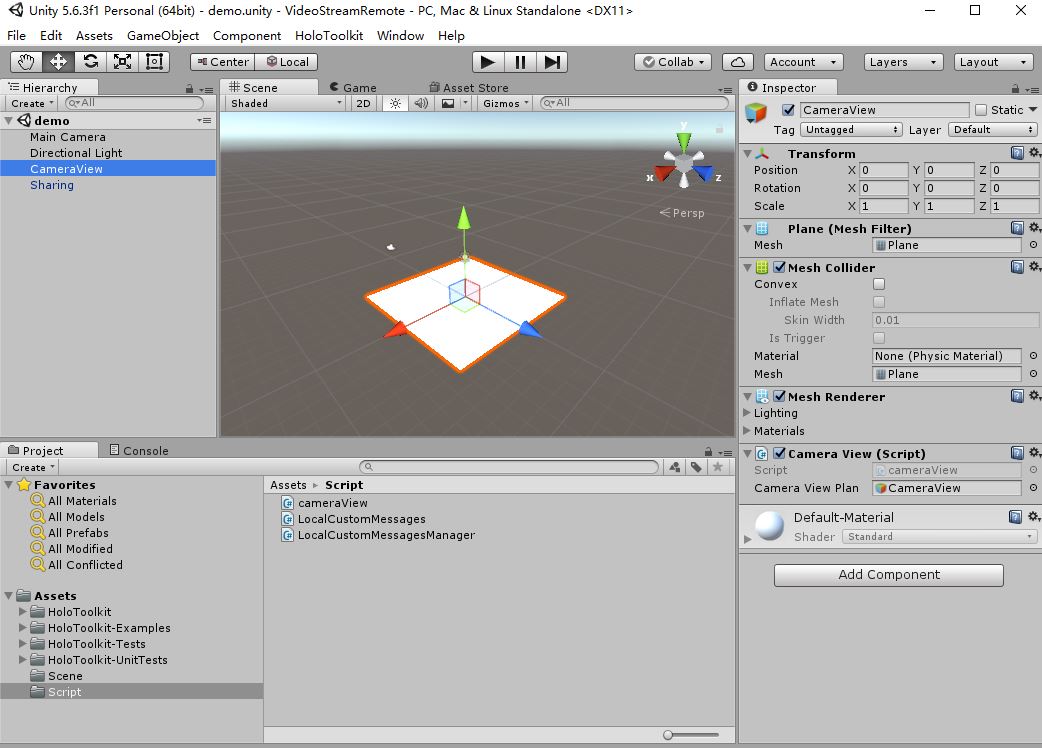

3 remote client

a, cameraView.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class cameraView : MonoBehaviour {

    public GameObject cameraViewPlan;

    public static byte[] currentFrame;
    private Texture2D viewTexture;

    // Use this for initialization
    void Start () {

        currentFrame = new byte[1280 * 720 * 4];
        viewTexture = new Texture2D(1280, 720);
    }

	// Update is called once per frame
	void Update () {

        viewTexture.LoadImage(currentFrame);
        viewTexture.Apply();

        GetComponent<Renderer>().material.mainTexture = viewTexture;
    }
}

如果在本地端不显示则把这两句注释

viewTexture.Apply();

 GetComponent<Renderer>().material.mainTexture = viewTexture;

b,LocalCustomMessagesManager.cs

接受数据

/// <summary>
        /// Called when a remote user sends a message.
        /// </summary>
        /// <param name="msg"></param>
        private void UpdateMessage(NetworkInMessage msg)
        {
            // Parse the message
            long userID = msg.ReadInt64();
            //接受视频

            int colorFrameLength = msg.ReadInt32();

            if (colorFrameLength > 1)
            {
                msg.ReadArray(cameraView.currentFrame, (uint)colorFrameLength);
            } ///后面继续写接受的，发送和接受的顺序要对应上不然会出错
        }







这个IP要把localhost修改为服务器的IP
