springboot项目+jpa+hibernate_shardingsphere hibernate

作者：weixin_40725706 | 2024-07-12 18:06:16

赞

踩

shardingsphere hibernate

springboot项目，自动化配置spring相关功能，一键启动。现搭建一个简单的具有数据存取功能的项目，使用的是jpa和hibernate。整个项目分为boot-web,boot-service,boot-dao,boot-base四个模块

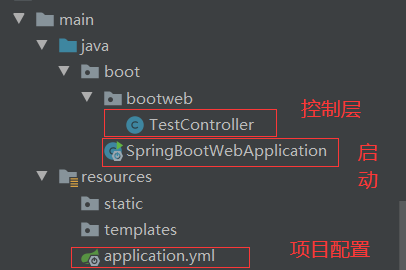

(1)boot-web部分

这个部分主要是控制层部分，项目的启动文件，项目的配置
web控制部分

1)控制层部分

TestController

package boot.bootweb;

import boot.bootdao.entity.Role;
import boot.bootdao.entity.User;
import boot.bootservice.RoleService;
import boot.bootservice.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class TestController {

    @Autowired
    private UserService userService;

    @Autowired
    private RoleService roleService;

    @ResponseBody  // 返回 Json 数据
    @GetMapping("addUser")
    private User addUser(){
        User user = new User();
        user.setName("姓名"+(int)(Math.random()*1000));
        return userService.addOne(user); // 成功返回 保存的数据
    }

    @ResponseBody
    @GetMapping("addRole")
    private Role addRole(){
        Role role=new Role();
        role.setName("角色名"+(int)(Math.random()*1000));
        return roleService.addOne(role);// 成功返回 保存的数据
    }

}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37

2)启动文件部分

SpringBootWebApplication

package boot;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootWebApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootWebApplication.class, args);
    }
}


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

3)项目配置

application.yml

spring:
  datasource:
    # jdbc:mysql://localhost:3306/test 数据库地址
    url: jdbc:mysql://localhost:3306/db1?useUnicode=true&characterEncoding=UTF-8&useSSL=false
    username: root # 数据库用户名  修改为自己数据库用户名和密码
    password: 123456  # 数据库密码
    driver-class-name: com.mysql.jdbc.Driver  # 数据库驱动

  jpa:
      hibernate:
        ddl-auto: none

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>boot</groupId>
    <artifactId>boot-web</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>boot-web</name>
    <description>Spring Boot with Mysql</description>

    <parent>
        <groupId>boot</groupId>
        <artifactId>bootmysql</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <!--编译编码-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--输出编码-->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!--java版本-->
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!-- 添加 user-servcie 的依赖 -->
        <dependency>
            <groupId>boot</groupId>
            <artifactId>boot-service</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61

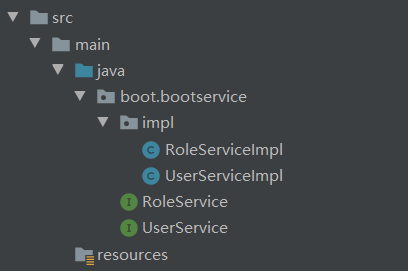

(2)boot-service部分

服务部分

1)接口

RoleService

package boot.bootservice;

import boot.bootdao.entity.Role;

public interface RoleService {

    Role addOne(Role role);
}


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

UserService

package boot.bootservice;

import boot.bootdao.entity.User;

/**
 * @Author y10
 * @Create 2020/03/06 13:57
 * @Desc
 */
public interface UserService {

    User addOne(User user);

}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14

2)实现类

RoleServiceImpl

package boot.bootservice.impl;

import boot.bootdao.entity.Role;
import boot.bootdao.repository.RoleRepository;
import boot.bootservice.RoleService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class RoleServiceImpl implements RoleService {

    @Autowired
    private RoleRepository roleRepository;

    @Override
    public Role addOne(Role role){
        return this.roleRepository.save(role);
    }
}


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20

UserServuceImpl

package boot.bootservice.impl;

import boot.bootdao.entity.User;
import boot.bootdao.repository.UserRepository;
import boot.bootservice.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @Override
    public User addOne(User user) {
        return this.userRepository.save(user);
    }
}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>boot</groupId>
    <artifactId>boot-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>user-service</name>
    <description>Spring Boot with Mysql</description>

    <parent>
        <groupId>boot</groupId>
        <artifactId>bootmysql</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <!--编译编码-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--输出编码-->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!--java版本-->
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!-- 添加 user-dao 的依赖 -->
        <dependency>
            <groupId>boot</groupId>
            <artifactId>boot-dao</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61

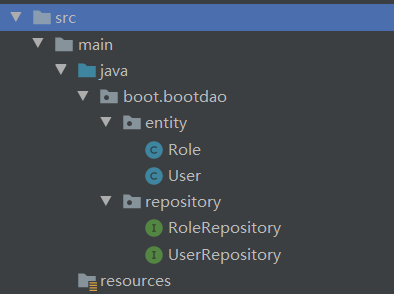

（3）boot-dao

数据层部分

1）entity 实体类部分

Role

package boot.bootdao.entity;

import javax.persistence.*;

@Entity(name="role")
public class Role {

    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    @Column(name = "id")
    private Integer id;

    @Column(name = "rname") //设置数据库字段名
    private String name;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32

User

package boot.bootdao.entity;

import javax.persistence.*;

@Entity(name = "user")  //设置实体名， 在数据库中是表名
public class User {

    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)  //设置自动增长
    @Column(name = "id")
    private Integer id;

    @Column(name = "name") //设置数据库字段名
    private String name;



    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }
}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33

2）repository jpa部分

RoleRepository

package boot.bootdao.repository;

import boot.bootdao.entity.Role;
import org.springframework.data.jpa.repository.JpaRepository;

public interface RoleRepository extends JpaRepository<Role,Integer> {
}


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

UserRespository

package boot.bootdao.repository;

import boot.bootdao.entity.User;
import org.springframework.data.jpa.repository.JpaRepository;

public interface UserRepository extends JpaRepository<User, Integer> {

}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>boot</groupId>
    <artifactId>boot-dao</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>boot-dao</name>
    <description>Spring Boot with Mysql</description>

    <parent>
        <groupId>boot</groupId>
        <artifactId>bootmysql</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <!--编译编码-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--输出编码-->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!--java版本-->
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <!-- 添加 user-base 的依赖 -->
        <dependency>
            <groupId>boot</groupId>
            <artifactId>boot-base</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63

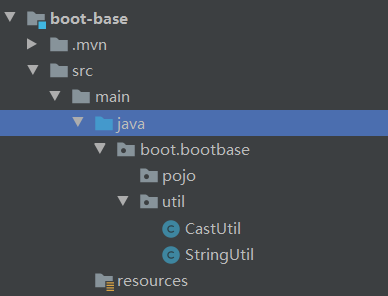

(4)boot-base 公共通用部分

通用

pojo 公共实体对象

util 通用方法类

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>boot</groupId>
    <artifactId>boot-base</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>boot-base</name>
    <description>Spring Boot with Mysql</description>

    <parent>
        <groupId>boot</groupId>
        <artifactId>bootmysql</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <!--编译编码-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--输出编码-->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!--java版本-->
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59

主pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <!-- 父项目 BOOTMYSQL 的版本信息 -->
    <groupId>boot</groupId>
    <artifactId>bootmysql</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>

    <name>BOOTMYSQL</name>
    <description>Spring Boot with Mysql</description>

    <!-- 继承说明：这里继承SpringBoot提供的父工程 -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.16.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <!-- 声明子模块 -->
    <modules>
        <module>boot-base</module>
        <module>boot-dao</module>
        <module>boot-service</module>
        <module>boot-web</module>
    </modules>

    <properties>
        <!--编译编码-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--输出编码-->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!--java版本-->
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
声明：本文内容由网友自发贡献，不代表【wpsshop博客】立场，版权归原作者所有，本站不承担相应法律责任。如您发现有侵权的内容，请联系我们。转载请注明出处：https://www.wpsshop.cn/w/weixin_40725706/article/detail/815284
推荐阅读
相关标签

Copyright © 2003-2013 www.wpsshop.cn 版权所有，并保留所有权利。



闽ICP备14008679号
