数据处理 —— 出租车gps提取订单数据_济南出租车轨迹数据

1. 需求目的：

约5千万条出租车gps数据存储在mysql中，数据按照一定时间频率记录，想要获取出其中的订单数量。

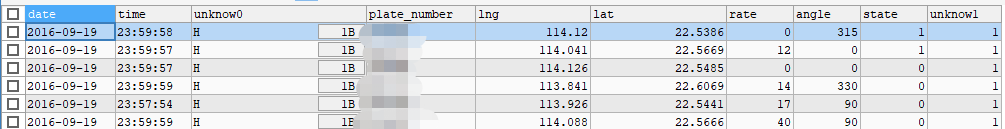

（数据示例）

2. 思路分析

plate_number是车牌号，state=1表示车上有人。数据先按照车辆分组，然后按时间排序，最后选出连续的序列state=1作为一个订单

3. 实践

3.1 sql合并数据

由于数据在mysql中被分成了200+个表，有两种处理方式：

1. 分别处理每个表获得每个车牌号数据，再按车牌号合并
2. 先把表合并成大表，直接整体处理获得每个车牌号数据（used in my project）

2021.10.30
需求：一天的出租车轨迹表被成了几百个表，需要将这些表合并
思路：读出这个数据库中所有的表名，循环将所有表合并到一个新表中（使用存储过程）
学习过程：

1. 两个表垂直拼接的方法

# 两个表之间的连接查询，但是会删除两个表中的重复数据`
select * from table union select * from table2
两个表之间的连接查询，不删除两个表中的重复数据`
select * from table union all select * from table2
1
2
3
4

comment：这样子写200+个句子不不现实，应该使用循环或者直接获取数据库中的表名

存储过程

DELIMITER $$

USE `taxigps`$$

DROP PROCEDURE IF EXISTS `test11`$$

CREATE DEFINER=`root`@`%` PROCEDURE `test11`()
BEGIN
        DECLARE stopflag INT DEFAULT 0;
        DECLARE tablename VARCHAR(64);
        -- 创建一个游标变量，declare 变量名 cursor ...
        DECLARE tablename_cur CURSOR FOR SELECT table_name FROM information_schema.tables WHERE table_schema='taxigps' AND table_name != 'taxi';
        -- 游标是保存查询结果的临时区域
        -- 游标变量username_cur保存了查询的临时结果，实际上就是结果集
        -- 当游标变量中保存的结果都查询一遍(遍历),到达结尾，将变量stopflag设置为1，用于循环中判断是否结束
        DECLARE CONTINUE HANDLER FOR NOT FOUND SET stopflag=1;

        OPEN tablename_cur; -- 打卡游标
        FETCH tablename_cur INTO tablename; -- 游标向前走一步，取出一条记录放到变量username中
#        SELECT tablename,000;
        WHILE(stopflag=0) DO -- 如果游标还没有结尾，就继续
            BEGIN
                -- 在用户名前门拼接 '_cur' 字符串
                SET @sql = CONCAT('insert into taxi SELECT * FROM ',tablename);
		PREPARE ss FROM @sql;
		EXECUTE ss;

                #INSERT INTO taxi SELECT * FROM trablename;
                FETCH tablename_cur INTO tablename;
            END;
        END WHILE; -- 结束循环
        CLOSE tablename_cur; -- 关闭游标
	END$$

DELIMITER ;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

3.2 按车牌号分组

"""
@author:HY
@time:2021/10/31:14:51
"""
from threading import Thread
import threading
from time import sleep, ctime
import pandas as pd
import time
import pickle


def solve_file(name, file):
    for index, row in file.iterrows():
        date, taxi_time, _, plate_number, lng, lat, _, _, state, _ = row
        if plate_number in taxi_dic.keys():
            taxi_dic[plate_number][taxi_time] = state
        else:
            taxi_dic[plate_number] = {taxi_time: state}


df = pd.read_csv('test.csv', header=None, sep='\t')
# df = pd.read_csv('20160920_taxigps.csv', header=None, sep='\t')

line_num = len(df)
taxi_dic = {}
time1 = time.time()

thread_num = 1
for i in range(thread_num):
    i = i + 1
    exec('divide_file' + str(i) + '  = int(line_num * ' + str(i) + '  / thread_num)')
    if i == 1:
        exec('df' + str(i) + ' = df[divide_file1:]')
    elif i == thread_num:
        exec('df' + str(i) + ' = df[:divide_file' + str(thread_num) + ']')
    else:
        exec('df' + str(i) + ' = df[divide_file' + str(i-1) + ':divide_file' + str(i) + ']')


for i in range(thread_num):
    exec('t' + str(i) + ' = threading.Thread(target=solve_file, args=('+ str(i) + ', df'+ str(i) + '))')
    exec('t' + str(i) + '.start()')
    exec('t' + str(i) + '.join()')

time2 = time.time()
with open('多线程-车辆数据字典.pickle', 'wb') as f:
    pickle.dump(taxi_dic, f)
taxi_dic.clear()
time3 = time.time()
solve_file('all',df)
time4 = time.time()
with open('单线程-车辆数据字典.pickle', 'wb') as f:
    pickle.dump(taxi_dic, f)
print(f'多线程聚合耗时：time={time2-time1}，单线程聚合耗时：time={time4-time3}')
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

3.3 生成订单数据

需求：3.2获得了每个车辆的数据，对于每个车辆这里需要按时间排序，然后生成一个订单
思路：多线程遍历每个车，寻找连续的state=1序列（多线程没单线程快…）
学习过程：

1. 线程的暂停与恢复

2. 关于锁：一个锁锁一个东西，这个东西释放了，别人才能拿到这个锁
   锁的描述

3. 字典按照key排序：

   sort_date = sorted(data.items(), key=lambda item: item[0])
   1

"""
@author:HY
@time:2021/11/1:10:34
"""
import pickle
import pandas as pd
from tqdm import tqdm
import threading


class Node:
    def __init__(self, value):
        self.value = value
        self.next = None


class Queue:
    """
    队列用于存储每个线程要处理的数据
    """
    def __init__(self):
        self.head = None
        self.tail = None
        self.length = 0

    def pop(self):
        if self.head is None: return None
        a = self.head
        if self.head.next is None:
            self.head = self.tail = None
        else:
            self.head = self.head.next
        self.length -= 1
        return a

    def push(self, node):
        if self.head is None:
            self.head = self.tail = node
        else:
            self.tail.next = node
            self.tail = node

        self.length += 1


class Request:
    def __init__(self, start_time, s_lng, s_lat):
        self.start_time = start_time
        self.s_lng = s_lng
        self.s_lat = s_lat
        self.e_lng = None
        self.e_lat = None
        self.end_time = None

class MY_Server(threading.Thread):
    def __init__(self, name, value=Queue()):
        threading.Thread.__init__(self)
        self.mName = name
        self.mEvent = threading.Event()
        self.data_queue = value
        self.is_running = False
        self.recieving = True

    def run(self):
        while self.recieving or self.data_queue.length > 0:  # 逐个车遍历。当该线程还在接受车辆或者队列还有的数据的时候都不停遍历

            data = self.data_queue.pop()  # data是一个列表，每个元素是[time, state,lng,lat]
            while data is None and self.recieving:
                self.is_running = False
                data = self.data_queue.pop()
            if data is None: break
            self.is_running = True

            # 排序字典：按时间排序

            sort_date = sorted(data.value, key=lambda item: item[0])
            vehicle_req_list = self.get_request(sort_date)

            # 将该车的订单加入列表
            lock.acquire()
            req_list.extend(vehicle_req_list)
            lock.release()

    def get_request(self, sort_data):
        """
        sort_data是一个列表，每个元素是一个列表 now, state, lng, lat
        """
        last = [None, 0, None, None]
        request_list = []
        one_request = None
        for s in sort_data:
            now, state, lng, lat = s  # 此刻状态
            last_now, last_state, last_lng, last_lat = last  # 之前状态
            if last_state == 0:  # 之前是没有人的状态，找1建立request
                if state == 0:
                    continue  # 中间的0全部跳过
                elif state == 1:  # 找到了一个首字母1，建立request并且last记录为当前
                    one_request = Request(now, lng, lat)
                    last = [now, state, lng, lat]
            elif last_state == 1:  # 有人的状态，找0前面的1
                if state == 1:  # 不断记录直到最后一个
                    last = [now, state, lng, lat]
                elif state == 0:
                    one_request.end_time = last_now
                    one_request.e_lng = last_lng
                    one_request.e_lat = last_lat
                    request_list.append(one_request)
        return request_list

    def pause(self):
        self.mEvent.clear()

    def resume(self):
        self.mEvent.set()

import time
if __name__ == "__main__":
    time1 = time.time()
    # 数据获取
    # all_dic = {'a': {30: 1, 40: 0, 50: 1}, 'b': {30: 1, 40: 0, 50: 0}}
    with open('多线程-车辆数据字典.pickle', 'rb') as f:
        all_dic = pickle.load(f)

    # 生成一个锁对象
    lock = threading.Lock()
    # 结果集
    req_list = []

    # 线程数量
    thread_num = 1

    # 开启线程
    # t0 = MY_Server(0)
    # t0.start()
    #
    # t1 = MY_Server(1)
    # t1.start()
    #
    # t2 = MY_Server(2)
    # t2.start()

    for i in range(thread_num):  # 12个线程
        exec('t' + str(i) + ' = MY_Server(i)')
        exec('t' + str(i) + '.start()')

    # 遍历数据输入给每个线程
    taxi_num = 0
    for _, value in all_dic.items():  # value是字典，key为时间，value为别的
        turn_to_whom = taxi_num % thread_num
        n = Node(value)
        exec('t' + str(turn_to_whom) + '.data_queue.push(n)')

    # 告诉所有线程数据传送完毕
    for i in range(thread_num):  # 12个线程
        exec('t' + str(i) + '.recieving = False')

    # join()
    for i in range(thread_num):  # 12个线程
        exec('t' + str(i) + '.join()')

    time2 = time.time()
    print(len(req_list))
    print('耗时', time2 - time1)
    # 保存订单数据
    with open('shenzhen_req.pickle', 'wb') as f:
        pickle.dump(req_list, f)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167

最后发现不如单线程跑得快，因此最终程序为

"""
@author:HY
@time:2021/11/1:16:51
"""
import pandas as pd
import time
import pickle
from tqdm import tqdm
import datetime

class Request:
    def __init__(self, start_time, s_lng, s_lat):
        self.start_time = start_time
        self.s_lng = s_lng
        self.s_lat = s_lat
        self.e_lng = None
        self.e_lat = None
        self.end_time = None
def solve_file(name, file):
    taxi_dic = {}
    for index, row in tqdm(file.iterrows(), desc='处理成逐个车辆'):
        date, taxi_time, _, plate_number, lng, lat, _, _, state, _ = row
        if plate_number in taxi_dic.keys():
            taxi_dic[plate_number].append([taxi_time, state, lng, lat])
        else:
            taxi_dic[plate_number] = [[taxi_time, state, lng, lat],]
    print('车辆数目', len(taxi_dic.keys()))
    with open('数据文件/单线程-车辆数据字典.pickle', 'wb') as f:
        pickle.dump(taxi_dic, f)
    return taxi_dic

def sum_request(taxi_dic):
    req_list = []
    for _, value in tqdm(taxi_dic.items(), desc='处理每个车辆'):
        sort_date = sorted(value, key=lambda item: item[0])
        vehicle_req_list = get_request(sort_date)
        req_list.extend(vehicle_req_list)
    # 保存订单数据
    with open('数据文件/shenzhen_req.pickle', 'wb') as f:
        pickle.dump(req_list, f)

def get_request(sort_data):
        """
        sort_data是一个列表，每个元素是一个列表 now, state, lng, lat
        """
        last = [None, 0, None, None]
        request_list = []
        one_request = None
        for s in sort_data:
            now, state, lng, lat = s  # 此刻状态
            last_now, last_state, last_lng, last_lat = last  # 之前状态
            if last_state == 0:  # 之前是没有人的状态，找1建立request
                if state == 0:
                    continue  # 中间的0全部跳过
                elif state == 1:  # 找到了一个首字母1，建立request并且last记录为当前
                    one_request = Request(now, lng, lat)
                last = [now, state, lng, lat]
            elif last_state == 1:  # 有人的状态，找0前面的1
                if state == 0:
                    one_request.end_time = last_now
                    one_request.e_lng = last_lng
                    one_request.e_lat = last_lat
                    request_list.append(one_request)
                last = [now, state, lng, lat]
        last_now, last_state, last_lng, last_lat = last  # 之前状态
        if last_state == 1:
            one_request.end_time = last_now
            one_request.e_lng = last_lng
            one_request.e_lat = last_lat
            request_list.append(one_request)
        return request_list

def get_file():
    """
    处理原文件获得订单
    :return:
    """
    time1 = time.time()
    df = pd.read_csv('20160920_taxigps.csv', header=None, sep='\t')
    time2 = time.time()
    taxi_dic = solve_file('all', df)
    time3 = time.time()
    sum_request(taxi_dic)
    time4 = time.time()

    print(f'读数据时间{time2-time1}，处理成单车辆时间{time3-time2}，统计订单时间{time4-time3}')
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
