matlab基于遗传算法的多目标优化算法（附代码获取方法）_多目标遗传算法matlab程序

介绍

前些天发现了一个巨牛的人工智能学习网站，通俗易懂，风趣幽默，忍不住分享一下给大家。点击跳转到网站
目前的多目标优化算法有很多， Kalyanmoy Deb的带精英策略的快速非支配排序遗传算法（ nondominated sorting genetic algorithm Il,NSGA-I）无疑是其中应用最为广泛也是最为成功的一种。

clc;clear;
tic;
%% 初始化
PopSize=200;%种群大小
MaxIteration =300;%最大迭代次数
R=50;
location1=load('location1_100.txt');%优化100个城市
location2=load('A_location2_100.txt');
% location1=load('location1.txt');
% location2=load('location2.txt');
CityNum =size(location1,2);%城市数
V=CityNum;
M=2;
pc=0.8;pm=0.9;
for i=1:PopSize
    chromosome(i,1:CityNum)=randperm(CityNum);
    chromosome(i,CityNum+1:CityNum+2)=costfunction(chromosome(i,1:CityNum),location1,location2);
end
chromosome= non_domination_sort_mod(chromosome);%将解分  最后一列为拥挤度 倒数第二列为分级数
index=find(chromosome(:,103)==1);
costrep=chromosome(index,101:102);%第一级即非劣解

%% 主循环
pool = round(PopSize/2);  %突变池规模

for Iteration=1:MaxIteration
    if ~mod(Iteration,10)
        fprintf('current iter:%d\n',Iteration)
        disp([' Number of Repository Particles = ' num2str(size(costrep,1))]);
    end
    parent_chromosome = selection_individuals(chromosome,pool,2);
    parent_var=parent_chromosome(:,1:CityNum);%分离出解向量
    %% 交叉
    offspring_var=[];offspring_cost=[];
    for ic=1:pool/2

        m1=randi(pool);%选出交叉向量
        m2=randi(pool);
        while m1==m2
            m1=randi(pool);
        end
        scro(1,:)=parent_var(m1,:);
        scro(2,:)=parent_var(m2,:);
        if rand<pc
            c1=randi(CityNum);%选出交叉位置
            c2=randi(CityNum);
            while c1==c2
                c1=randi(CityNum);
            end
            chb1=min(c1,c2);
            chb2=max(c1,c2);

            middle=scro(1,chb1+1:chb2);
            scro(1,chb1+1:chb2)=scro(2,chb1+1:chb2);
            scro(2,chb1+1:chb2)=middle;
            for i=1:chb1
                while find(scro(1,chb1+1:chb2)==scro(1,i))
                    zhi=find(scro(1,chb1+1:chb2)==scro(1,i));
                    y=scro(2,chb1+zhi);
                    scro(1,i)=y;
                end
                while find(scro(2,chb1+1:chb2)==scro(2,i))
                    zhi=find(scro(2,chb1+1:chb2)==scro(2,i));
                    y=scro(1,chb1+zhi);
                    scro(2,i)=y;
                end
            end
            for i=chb2+1:CityNum
                while find(scro(1,1:chb2)==scro(1,i))
                    zhi=find(scro(1,1:chb2)==scro(1,i));
                    y=scro(2,zhi);
                    scro(1,i)=y;
                end
                while find(scro(2,1:chb2)==scro(2,i))
                    zhi=find(scro(2,1:chb2)==scro(2,i));
                    y=scro(1,zhi);
                    scro(2,i)=y;
                end
            end
        end
        if rand<pm%逆序变异
            m1=randi(CityNum);
            m2=randi(CityNum);
            while m1==m2
                m1=randi(CityNum);
            end
            loc1=min(m1,m2);loc2=max(m1,m2);
            scro(1,loc1:loc2)=fliplr(scro(1,loc1:loc2));
            %             tt=scro(1,m2);
            %             scro(1,m2)=scro(1,m1);
            %             scro(1,m1)=tt;
        end
        if rand<pm%对换变异
            m1=randi(CityNum);
            m2=randi(CityNum);
            while m1==m2
                m1=randi(CityNum);
            end
            tt=scro(2,m2);
            scro(2,m2)=scro(2,m1);
            scro(2,m1)=tt;
        end
        scro_cost(1,:)=costfunction(scro(1,:),location1,location2);
        scro_cost(2,:)=costfunction(scro(2,:),location1,location2);
        offspring_var=[offspring_var;scro];%解
        offspring_cost=[offspring_cost;scro_cost];%适应度

    end
    offspring_chromosome(:,1:V)=offspring_var;
    offspring_chromosome(:,V+1:V+M)=offspring_cost;

    main_pop = size(chromosome,1);
    offspring_pop = size(offspring_chromosome,1);
    intermediate_chromosome(1:main_pop,:) = chromosome;
    intermediate_chromosome(main_pop + 1 :main_pop + offspring_pop,1 : M+V) = ...
        offspring_chromosome;
    intermediate_chromosome = ...
        non_domination_sort_mod(intermediate_chromosome);
    %% 选择

    chromosome = replace_chromosome(intermediate_chromosome,PopSize);


    index=find(intermediate_chromosome(:,103)==1);
    costrep=intermediate_chromosome(index,101:102);
    cost=intermediate_chromosome(:,101:102);
        if ~mod(Iteration,1)

            figure (1)
            plot(costrep(:,1),costrep(:,2),'r*',cost(:,1),cost(:,2),'kx');
            xlabel('F1');ylabel('F2');
            title(strcat('Interaction ',num2str(Iteration), ' Pareto non-dominated solutions'));
            %          hold on
        end
    if ~mod(Iteration,MaxIteration)
        %             if ~mod(Iteration,1)
        fun_pf=costrep;
        [fun_pf,~]=sortrows(fun_pf,1);
        plot(fun_pf(:,1),fun_pf(:,2),'k*-');
        title(strcat('Interaction ',num2str(Iteration), ' Pareto non-dominated solutions'));
        hold on;
        grid on;
    end
end
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145

运行过程

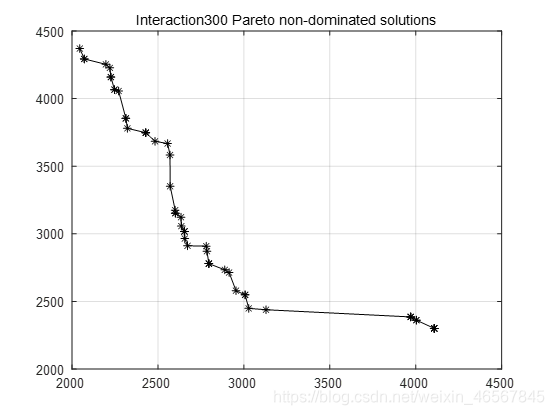

运行结果
