mac- docker desktop 安装单体Kubernetes_mac docker desktop

作者：思考机器 | 2024-01-30 19:21:18

赞

踩

mac docker desktop

1.安装mac-docker desktop  官网下载安装  Download Docker Desktop | Docker

2.安装后查看版本

此文kubenetes版本为1.19.7  如果不是该版本需要自行修改配置

其他版本 可以参考 https://github.com/AliyunContainerService/k8s-for-docker-desktop

3.如果想启动kubenetes 是很简单的 前提 可以科学上网 而且网速够快 设置里修改enable kubenetes  勾选打开 然后就是静静的等待

4.如果想体验一把kubenetes 又不能科学上网 没有稳定的高网速 只能找国内的镜像 刚好国内有阿里云存在同步的镜像  我们可以直接使用 注意：没有下载镜像之前和没有第三部的条件 先不要开启kubenetes   开启了的话默认开始下载  会卡住

5.首先下载好kubenetes 1.19.7 所需镜像  然后在开启

6.创建下载镜像文件 vim  load_images.sh

  1. #!/bin/bash
  2.
  3. set -e
  4. KUBE_VERSION=v1.19.7
  5. KUBE_PAUSE_VERSION=3.2
  6. ETCD_VERSION=3.4.13-0
  7. COREDNS_VERSION=1.7.0
  8. GCR_URL=k8s.gcr.io
  9. ALIYUN_URL=registry.cn-hangzhou.aliyuncs.com/google_containers
  10.
  11. # get images
  12. images=(kube-proxy:${KUBE_VERSION}
  13.     kube-scheduler:${KUBE_VERSION}
  14.     kube-controller-manager:${KUBE_VERSION}
  15.     kube-apiserver:${KUBE_VERSION}
  16.     pause:${KUBE_PAUSE_VERSION}
  17.     etcd:${ETCD_VERSION}
  18.     coredns:${COREDNS_VERSION})
  19.
  20. for imageName in ${images[@]} ; do
  21.     docker pull $ALIYUN_URL/$imageName
  22.     docker tag $ALIYUN_URL/$imageName $GCR_URL/$imageName
  23.     docker rmi $ALIYUN_URL/$imageName
  24. done
  25.
  26. # show images
  27. docker images

7.授予文件可执行权限 chmod +x ./load_images.sh

8.执行完成可看到镜像已经下载好

 9.这时候 镜像准备就绪 可以打开 enable kubenetes  注意需要重启docker  如果没有看到kubenetes 为running

10.安装kubenetes 控制工具 kubectl

11.下载 kubernetes 1.19.7 下载地址：kubernetwindowses-client-darwin-amd64.tar.gz

12. 解压  tar -zxvf kubernetwindowses-client-darwin-amd64.tar.gz

13. 移动文件到系统特定目录下 并且给本用户授权

chmod u+x && mv kubectl /usr/local/bin/kubectl

14.配置kubectl 使用桌面版的k8s上下文

```shell

#docker-desktop 替换为自己的上下文

kubectl config set-context docker-desktop

kubectl config use-context docker-desktop

```

15. 查看kubectl version

16.查看一波node

kubectl -n kube-system get node

17.查看pod

kubectl -n kube-system get pod

18.安装dashboard （可选）图形化界面方便查看 官网如 https://github.com/kubernetes/dashboard

19.下载dashboard 所需镜像  新建拉取镜像脚本

vim load_dashboard_images.sh

#!/bin/bash
set -e
KUBE_DASHBOARD_VERSION=v2.0.3
METRICS_SCRAPER=v1.0.4
KUBENETESUI_URL=kubernetesui
ALIYUN_KUBENETESUI_URL=registry.cn-hangzhou.aliyuncs.com/kubernetes_ns

# get images (ui)
imagesui=(dashboard:${KUBE_DASHBOARD_VERSION}
    metrics-scraper:${METRICS_SCRAPER})

for imageName in ${imagesui[@]} ; do
    docker pull $ALIYUN_KUBENETESUI_URL/$imageName
    docker tag $ALIYUN_KUBENETESUI_URL/$imageName $KUBENETESUI_URL/$imageName
    docker rmi $ALIYUN_KUBENETESUI_URL/$imageName
done

# show images
docker images

20.运行后可以看到 已经下载好的镜像

安装步骤如下

Install

To deploy Dashboard, execute following command:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.2.0/aio/deploy/recommended.yaml

可能由于网络原因下载不到 recommended.yaml 现在提供一个该文件  直接复制到本地既可

  1. # Copyright 2017 The Kubernetes Authors.
  2. #
  3. # Licensed under the Apache License, Version 2.0 (the "License");
  4. # you may not use this file except in compliance with the License.
  5. # You may obtain a copy of the License at
  6. #
  7. #     http://www.apache.org/licenses/LICENSE-2.0
  8. #
  9. # Unless required by applicable law or agreed to in writing, software
  10. # distributed under the License is distributed on an "AS IS" BASIS,
  11. # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  12. # See the License for the specific language governing permissions and
  13. # limitations under the License.
  14. ​
  15. apiVersion: v1
  16. kind: Namespace
  17. metadata:
  18.   name: kubernetes-dashboard
  19. ​
  20. ---
  21. ​
  22. apiVersion: v1
  23. kind: ServiceAccount
  24. metadata:
  25.   labels:
  26.     k8s-app: kubernetes-dashboard
  27.   name: kubernetes-dashboard
  28.   namespace: kubernetes-dashboard
  29. ​
  30. ---
  31. ​
  32. kind: Service
  33. apiVersion: v1
  34. metadata:
  35.   labels:
  36.     k8s-app: kubernetes-dashboard
  37.   name: kubernetes-dashboard
  38.   namespace: kubernetes-dashboard
  39. spec:
  40.   ports:
  41.     - port: 443
  42.       targetPort: 8443
  43.   selector:
  44.     k8s-app: kubernetes-dashboard
  45. ​
  46. ---
  47. ​
  48. apiVersion: v1
  49. kind: Secret
  50. metadata:
  51.   labels:
  52.     k8s-app: kubernetes-dashboard
  53.   name: kubernetes-dashboard-certs
  54.   namespace: kubernetes-dashboard
  55. type: Opaque
  56. ​
  57. ---
  58. ​
  59. apiVersion: v1
  60. kind: Secret
  61. metadata:
  62.   labels:
  63.     k8s-app: kubernetes-dashboard
  64.   name: kubernetes-dashboard-csrf
  65.   namespace: kubernetes-dashboard
  66. type: Opaque
  67. data:
  68.   csrf: ""
  69. ​
  70. ---
  71. ​
  72. apiVersion: v1
  73. kind: Secret
  74. metadata:
  75.   labels:
  76.     k8s-app: kubernetes-dashboard
  77.   name: kubernetes-dashboard-key-holder
  78.   namespace: kubernetes-dashboard
  79. type: Opaque
  80. ​
  81. ---
  82. ​
  83. kind: ConfigMap
  84. apiVersion: v1
  85. metadata:
  86.   labels:
  87.     k8s-app: kubernetes-dashboard
  88.   name: kubernetes-dashboard-settings
  89.   namespace: kubernetes-dashboard
  90. ​
  91. ---
  92. ​
  93. kind: Role
  94. apiVersion: rbac.authorization.k8s.io/v1
  95. metadata:
  96.   labels:
  97.     k8s-app: kubernetes-dashboard
  98.   name: kubernetes-dashboard
  99.   namespace: kubernetes-dashboard
  100. rules:
  101.   # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  102.   - apiGroups: [""]
  103.     resources: ["secrets"]
  104.     resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
  105.     verbs: ["get", "update", "delete"]
  106.     # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  107.   - apiGroups: [""]
  108.     resources: ["configmaps"]
  109.     resourceNames: ["kubernetes-dashboard-settings"]
  110.     verbs: ["get", "update"]
  111.     # Allow Dashboard to get metrics.
  112.   - apiGroups: [""]
  113.     resources: ["services"]
  114.     resourceNames: ["heapster", "dashboard-metrics-scraper"]
  115.     verbs: ["proxy"]
  116.   - apiGroups: [""]
  117.     resources: ["services/proxy"]
  118.     resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
  119.     verbs: ["get"]
  120. ​
  121. ---
  122. ​
  123. kind: ClusterRole
  124. apiVersion: rbac.authorization.k8s.io/v1
  125. metadata:
  126.   labels:
  127.     k8s-app: kubernetes-dashboard
  128.   name: kubernetes-dashboard
  129. rules:
  130.   # Allow Metrics Scraper to get metrics from the Metrics server
  131.   - apiGroups: ["metrics.k8s.io"]
  132.     resources: ["pods", "nodes"]
  133.     verbs: ["get", "list", "watch"]
  134. ​
  135. ---
  136. ​
  137. apiVersion: rbac.authorization.k8s.io/v1
  138. kind: RoleBinding
  139. metadata:
  140.   labels:
  141.     k8s-app: kubernetes-dashboard
  142.   name: kubernetes-dashboard
  143.   namespace: kubernetes-dashboard
  144. roleRef:
  145.   apiGroup: rbac.authorization.k8s.io
  146.   kind: Role
  147.   name: kubernetes-dashboard
  148. subjects:
  149.   - kind: ServiceAccount
  150.     name: kubernetes-dashboard
  151.     namespace: kubernetes-dashboard
  152. ​
  153. ---
  154. ​
  155. apiVersion: rbac.authorization.k8s.io/v1
  156. kind: ClusterRoleBinding
  157. metadata:
  158.   name: kubernetes-dashboard
  159. roleRef:
  160.   apiGroup: rbac.authorization.k8s.io
  161.   kind: ClusterRole
  162.   name: kubernetes-dashboard
  163. subjects:
  164.   - kind: ServiceAccount
  165.     name: kubernetes-dashboard
  166.     namespace: kubernetes-dashboard
  167. ​
  168. ---
  169. ​
  170. kind: Deployment
  171. apiVersion: apps/v1
  172. metadata:
  173.   labels:
  174.     k8s-app: kubernetes-dashboard
  175.   name: kubernetes-dashboard
  176.   namespace: kubernetes-dashboard
  177. spec:
  178.   replicas: 1
  179.   revisionHistoryLimit: 10
  180.   selector:
  181.     matchLabels:
  182.       k8s-app: kubernetes-dashboard
  183.   template:
  184.     metadata:
  185.       labels:
  186.         k8s-app: kubernetes-dashboard
  187.     spec:
  188.       containers:
  189.         - name: kubernetes-dashboard
  190.           image: kubernetesui/dashboard:v2.2.0
  191.           imagePullPolicy: Always
  192.           ports:
  193.             - containerPort: 8443
  194.               protocol: TCP
  195.           args:
  196.             - --auto-generate-certificates
  197.             - --namespace=kubernetes-dashboard
  198.             # Uncomment the following line to manually specify Kubernetes API server Host
  199.             # If not specified, Dashboard will attempt to auto discover the API server and connect
  200.             # to it. Uncomment only if the default does not work.
  201.             # - --apiserver-host=http://my-address:port
  202.           volumeMounts:
  203.             - name: kubernetes-dashboard-certs
  204.               mountPath: /certs
  205.               # Create on-disk volume to store exec logs
  206.             - mountPath: /tmp
  207.               name: tmp-volume
  208.           livenessProbe:
  209.             httpGet:
  210.               scheme: HTTPS
  211.               path: /
  212.               port: 8443
  213.             initialDelaySeconds: 30
  214.             timeoutSeconds: 30
  215.           securityContext:
  216.             allowPrivilegeEscalation: false
  217.             readOnlyRootFilesystem: true
  218.             runAsUser: 1001
  219.             runAsGroup: 2001
  220.       volumes:
  221.         - name: kubernetes-dashboard-certs
  222.           secret:
  223.             secretName: kubernetes-dashboard-certs
  224.         - name: tmp-volume
  225.           emptyDir: {}
  226.       serviceAccountName: kubernetes-dashboard
  227.       nodeSelector:
  228.         "kubernetes.io/os": linux
  229.       # Comment the following tolerations if Dashboard must not be deployed on master
  230.       tolerations:
  231.         - key: node-role.kubernetes.io/master
  232.           effect: NoSchedule
  233. ​
  234. ---
  235. ​
  236. kind: Service
  237. apiVersion: v1
  238. metadata:
  239.   labels:
  240.     k8s-app: dashboard-metrics-scraper
  241.   name: dashboard-metrics-scraper
  242.   namespace: kubernetes-dashboard
  243. spec:
  244.   ports:
  245.     - port: 8000
  246.       targetPort: 8000
  247.   selector:
  248.     k8s-app: dashboard-metrics-scraper
  249. ​
  250. ---
  251. ​
  252. kind: Deployment
  253. apiVersion: apps/v1
  254. metadata:
  255.   labels:
  256.     k8s-app: dashboard-metrics-scraper
  257.   name: dashboard-metrics-scraper
  258.   namespace: kubernetes-dashboard
  259. spec:
  260.   replicas: 1
  261.   revisionHistoryLimit: 10
  262.   selector:
  263.     matchLabels:
  264.       k8s-app: dashboard-metrics-scraper
  265.   template:
  266.     metadata:
  267.       labels:
  268.         k8s-app: dashboard-metrics-scraper
  269.       annotations:
  270.         seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
  271.     spec:
  272.       containers:
  273.         - name: dashboard-metrics-scraper
  274.           image: kubernetesui/metrics-scraper:v1.0.6
  275.           ports:
  276.             - containerPort: 8000
  277.               protocol: TCP
  278.           livenessProbe:
  279.             httpGet:
  280.               scheme: HTTP
  281.               path: /
  282.               port: 8000
  283.             initialDelaySeconds: 30
  284.             timeoutSeconds: 30
  285.           volumeMounts:
  286.           - mountPath: /tmp
  287.             name: tmp-volume
  288.           securityContext:
  289.             allowPrivilegeEscalation: false
  290.             readOnlyRootFilesystem: true
  291.             runAsUser: 1001
  292.             runAsGroup: 2001
  293.       serviceAccountName: kubernetes-dashboard
  294.       nodeSelector:
  295.         "kubernetes.io/os": linux
  296.       # Comment the following tolerations if Dashboard must not be deployed on master
  297.       tolerations:
  298.         - key: node-role.kubernetes.io/master
  299.           effect: NoSchedule
  300.       volumes:
  301.         - name: tmp-volume
  302.           emptyDir: {}

Alternatively, you can install Dashboard using Helm as described at kubernetes-dashboard 6.0.8 · helm/k8s-dashboard.

Access

To access Dashboard from your local workstation you must create a secure channel to your Kubernetes cluster. Run the following command:

kubectl proxy

Now access Dashboard at:

http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

安装成功后效果如下

使用token登录

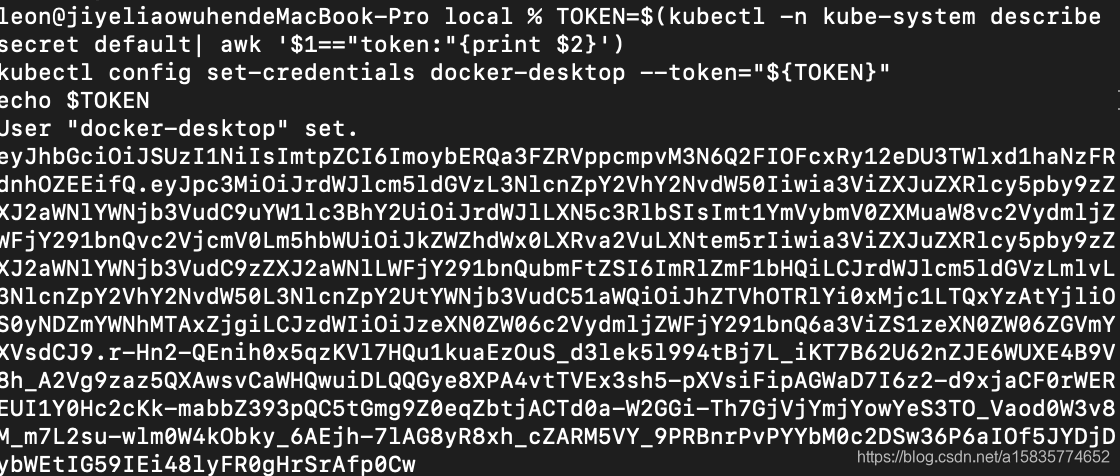

通过以下脚本，配置访问控制台所需的令牌。

  1. TOKEN=$(kubectl -n kube-system describe secret default| awk '$1=="token:"{print $2}')
  2. kubectl config set-credentials docker-desktop --token="${TOKEN}"
  3. echo $TOKEN

复制上述生成的令牌 选择token登录 粘贴到输入框 点击登录 既可登录成功

登录后界面如下

本文中参考的内容

 dockerDesktop 安装自带k8s 1.19.7版本_qq_29830577的博客-CSDN博客

https://github.com/kubernetes/dashboard

声明：本文内容由网友自发贡献，不代表【wpsshop博客】立场，版权归原作者所有，本站不承担相应法律责任。如您发现有侵权的内容，请联系我们。转载请注明出处：https://www.wpsshop.cn/article/detail/48440
推荐阅读
相关标签

Copyright © 2003-2013 www.wpsshop.cn 版权所有，并保留所有权利。



闽ICP备14008679号
