Flink1.13中tableAPI对接数据源的source&sink_flink tableenv.connect已过时

目录

过时的文件source

推荐的文件source

过时的文件Sink

推荐的文件Sink

过时的kafka-Source

推荐的kafka-Source

过时的kafka-Sink

推荐的kafka-Sink

---

在学习的过程中遇到了file和kafka数据源读写（sink和source）的问题，我使用的flink是1.13.3的版本，发现connect方法已经过时了，于是就去官网查看了一下推荐的方式，下面我会用代码来实现一下：

参考官方文档：CSVhttps://nightlies.apache.org/flink/flink-docs-release-1.13/zh/docs/connectors/table/formats/csv/Kafkahttps://nightlies.apache.org/flink/flink-docs-release-1.13/zh/docs/connectors/table/kafka/

 本地数据源：

id,timeStamp,temperature
sensor_1,1,1
sensor_1,2,2
sensor_1,3,32
sensor_1,4,4
sensor_1,5,5
sensor_1,22,6
sensor_1,23,99
sensor_2,25,13
sensor_2,32,40.2
sensor_3,40,42

过时的文件source

添加依赖

<dependency>
     <groupId>org.apache.flink</groupId>
     <artifactId>flink-csv</artifactId>
     <version>1.13.3</version>
</dependency>

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);


        //step-1 表的元数据
        Schema schema = new Schema()
                .field("id", DataTypes.STRING())
                .field("timeStamp", DataTypes.BIGINT())
                .field("temperature", DataTypes.FLOAT());

        //step-2 连接文件，并创建一个临时表，其实就是一个动态表
        tEnv.connect(new FileSystem()
                        .path("..\\resources\\sensor.txt"))
                .withSchema(schema)//定义表结构
                //fieldDelimiter是一行数据根据逗号划分字段
                //lineDelimiter每行数据根据换行符划分一条数据
                .withFormat(new Csv().fieldDelimiter(',').lineDelimiter("\n"))
                .createTemporaryTable("sensor");//创建临时表


        //step-3 做成表对象,然后对动态表进行查询
        Table resTable = tEnv.from("sensor")
                .groupBy($("id"))
                .select($("id"), $("id").count().as("cnt"));
        tEnv.toRetractStream(resTable, Row.class).print("cnt");

        env.execute();

推荐的文件source

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //step-1 编写数据source的sql语句
        String sourceDDL =
                "create table sensor_source(id STRING," +
                        "`timeStamp` BIGINT," +
                        "temperature DOUBLE" +
                        ") with (" +
                        "'connector'='filesystem'," +
                        "'format'='csv'," +
                        "'csv.field-delimiter'=','," + //每个字段按,切分且这里不用指定每行数据的切分，默认一行一行读
                        "'path'='..\\resources\\sensor.txt'" +
                        ")";
        tEnv.executeSql(sourceDDL);

        Table resTable = tEnv.from("sensor_source")
                .groupBy($("id"))
                .select($("id"), $("id").count().as("cnt"));
        tEnv.toRetractStream(resTable, Row.class).print("cnt");

        env.execute();

实现结果

cnt> (true,+I[sensor_1, 1])
cnt> (false,-U[sensor_1, 1])
cnt> (true,+U[sensor_1, 2])
cnt> (false,-U[sensor_1, 2])
cnt> (true,+U[sensor_1, 3])
cnt> (false,-U[sensor_1, 3])
cnt> (true,+U[sensor_1, 4])
cnt> (false,-U[sensor_1, 4])
cnt> (true,+U[sensor_1, 5])
cnt> (false,-U[sensor_1, 5])
cnt> (true,+U[sensor_1, 6])
cnt> (false,-U[sensor_1, 6])
cnt> (true,+U[sensor_1, 7])
cnt> (true,+I[sensor_2, 1])
cnt> (false,-U[sensor_2, 1])
cnt> (true,+U[sensor_2, 2])
cnt> (true,+I[sensor_3, 1])


过时的文件Sink

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //step-1 建造数据源
        DataStreamSource<SensorReading> waterSensorStream =
                env.fromElements(new SensorReading("sensor_1", 1000L, 10D),
                        new SensorReading("sensor_1", 2000L, 20D),
                        new SensorReading("sensor_2", 3000L, 30D),
                        new SensorReading("sensor_1", 4000L, 40D),
                        new SensorReading("sensor_1", 5000L, 50D),
                        new SensorReading("sensor_2", 6000L, 60D));

        //step-2 处理数据
        Table resTable = tEnv.fromDataStream(waterSensorStream)
                .where($("id").isEqual("sensor_1"))
                .select($("id"), $("timeStamp"), $("temperature"));


        //step-3 配置元数据
        Schema schema = new Schema()
                .field("id", DataTypes.STRING())
                .field("timeStamp", DataTypes.BIGINT())
                .field("temperature", DataTypes.DOUBLE());

        tEnv.connect(new FileSystem().path("output/sink.txt"))
                .withFormat(new Csv().fieldDelimiter(','))
                .withSchema(schema)
                .createTemporaryTable("sensor_sink");

        resTable.executeInsert("sensor_sink");
       /*
        * explain
        * env.execute()方法会去分析代码，生成一些 graph，但是我们代码中没有调用算子，所以会报错，可以直接不用
        * */

推荐的文件Sink

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //step-1 建造数据源
        DataStreamSource<SensorReading> waterSensorStream =
                env.fromElements(new SensorReading("sensor_1", 1000L, 10D),
                        new SensorReading("sensor_1", 2000L, 20D),
                        new SensorReading("sensor_2", 3000L, 30D),
                        new SensorReading("sensor_1", 4000L, 40D),
                        new SensorReading("sensor_1", 5000L, 50D),
                        new SensorReading("sensor_2", 6000L, 60D));

        //step-2 处理数据
        Table resTable = tEnv.fromDataStream(waterSensorStream)
                .where($("id").isEqual("sensor_1"))
                .select($("id"), $("timeStamp"), $("temperature"));


        tEnv.executeSql(
                "create table file_sink(" +
                        "`id` STRING," +
                        "`timestamp` BIGINT," +
                        "`temp` DOUBLE" +
                        ")with(" +
                        "'connector' = 'filesystem'," +
                        "'format'='csv'," + //可以填写json
                        //explain 当解析异常时，是跳过当前字段或行，还是抛出错误失败（默认为 false，即抛出错误失败）。如果忽略字段的解析异常，则会将该字段值设置为null。
                        "'csv.ignore-parse-errors' = 'true'," +
                        //explain 是否允许忽略注释行（默认不允许），注释行以 '#' 作为起始字符。 如果允许注释行，请确保 csv.ignore-parse-errors 也开启了从而允许空行。
                        "'csv.allow-comments' = 'true'," +
                        "'path'='output/sink_new.txt'" +
                        ")");

        resTable.executeInsert("file_sink");

实现结果

过时的kafka-Source

添加依赖

<dependency>
       <groupId>org.apache.flink</groupId>
       <artifactId>flink-connector-kafka_2.12</artifactId>
       <version>1.13.3</version>
</dependency>

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);


        //step-1 表的元数据
        Schema schema = new Schema()
                .field("id", DataTypes.STRING())
                .field("timeStamp", DataTypes.BIGINT())
                .field("temperature", DataTypes.FLOAT());

        //接收来自sensor主题的消息
        tEnv.connect(new Kafka()
                        .version("universal") //kafka通用版本
                        .topic("sensor")
                        .startFromLatest()
                        .property("group.id", "bigdata")
                        .property("bootstrap.servers", "hadoop102:9092,hadoop103:9092,hadoop104:9092"))
                .withFormat(new Json())
                .withSchema(schema)
                .createTemporaryTable("sensor");

        Table table = tEnv.from("sensor")
                .groupBy($("id"))
                .select($("id"), $("id").count().as("cnt"));

        tEnv.toRetractStream(table, Row.class).print();
        env.execute();

推荐的kafka-Source

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        tEnv.executeSql(
                "create table kafka_source(" +
                        "`id` STRING," +
                        "`timestamp` BIGINT," +
                        "`temp` DOUBLE" +
                        ")with(" +
                        "'connector' = 'kafka'," +
                        "'topic' = 'sensor'," +
                        "'properties.bootstrap.servers' = 'hadoop102:9092'," +
                        "'properties.group.id' = 'bigdata'," +
                        "'format' = 'json'," + //接收到的kafka都是json格式
                        "'json.ignore-parse-errors' = 'true'" +
                        ")");

        Table table = tEnv.from("kafka_source")
                .groupBy($("id"))
                .select($("id"), $("id").count().as("cnt"));

        tEnv.toRetractStream(table, Row.class).print();

        env.execute();

实现结果

这里注意kafka发送的数据格式必须是json格式

(true,+I[sensor_1, 1])
(false,-U[sensor_1, 1])
(true,+U[sensor_1, 2])
(true,+I[sensor_2, 1])

过时的kafka-Sink

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //step-1 建造数据源
        DataStreamSource<SensorReading> waterSensorStream =
                env.fromElements(new SensorReading("sensor_1", 1000L, 10D),
                        new SensorReading("sensor_1", 2000L, 20D),
                        new SensorReading("sensor_2", 3000L, 30D),
                        new SensorReading("sensor_1", 4000L, 40D),
                        new SensorReading("sensor_1", 5000L, 50D),
                        new SensorReading("sensor_2", 6000L, 60D));

        //step-2 处理数据
        Table sensorTable = tEnv.fromDataStream(waterSensorStream);
        Table resultTable = sensorTable
                .where($("id").isEqual("sensor_1"))
                .select($("id"), $("timeStamp"), $("temperature"));

        //step-3 配置元数据
        Schema schema = new Schema()
                .field("id", DataTypes.STRING())
                .field("timeStamp", DataTypes.BIGINT())
                .field("temperature", DataTypes.DOUBLE());

        tEnv.connect(new Kafka()
                        .version("universal")
                        .topic("sensor")
                        .sinkPartitionerRoundRobin() // 分区轮询
                        .property("bootstrap.servers", "hadoop102:9092,hadoop103:9092,hadoop104:9092"))
                .withFormat(new Json())
                .withSchema(schema)
                .createTemporaryTable("kafka_sink");

        resultTable.executeInsert("kafka_sink");

推荐的kafka-Sink

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //step-1 建造数据源
        DataStreamSource<SensorReading> waterSensorStream =
                env.fromElements(new SensorReading("sensor_1", 1000L, 10D),
                        new SensorReading("sensor_1", 2000L, 20D),
                        new SensorReading("sensor_2", 3000L, 30D),
                        new SensorReading("sensor_1", 4000L, 40D),
                        new SensorReading("sensor_1", 5000L, 50D),
                        new SensorReading("sensor_2", 6000L, 60D));

        //step-2 处理数据
        Table sensorTable = tEnv.fromDataStream(waterSensorStream);
        Table resultTable = sensorTable
                .where($("id").isEqual("sensor_1"))
                .select($("id"), $("timeStamp"), $("temperature"));


        tEnv.executeSql(
                "create table kafka_sink(" +
                        "`id` STRING," +
                        "`timestamp` BIGINT," +
                        "`temp` DOUBLE" +
                        ")with(" +
                        "'connector' = 'kafka'," +
                        "'topic' = 'sensor'," +
                        "'properties.bootstrap.servers' = 'hadoop102:9092'," +
                        "'properties.group.id' = 'bigdata'," +
                        "'format' = 'json'," +
                        "'json.ignore-parse-errors' = 'true'" +
                        ")");
        /*
        * Conclusion
        * 对于source和sink上面的配置文件是没有办法影响的,source和sink的配置文件都是一样的;
        * 影响source和sink的就是下面调用的executeInsert("kafka_sink")和
        * tEnv.from("kafka_source"),这才是影响source和sink的方法。
        * */

        resultTable.executeInsert("kafka_sink");

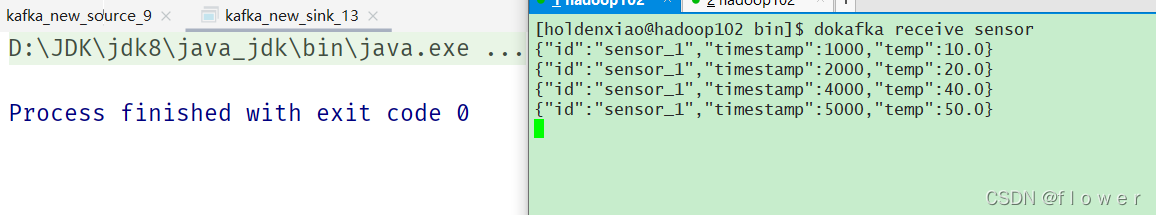

实现结果

至此，实验结束，当作一个学习的记录吧。
