k8s——通过暴漏端口实现外部访问服务_通过节点端口 k8s

通过nodeport暴漏端口

• 修改nginx-service.yaml文件

apiVersion: v1
kind: Service
metadata:
  name: nginxdeploy
spec:
  type: NodePort
  ports:
  - port: 82
    protocol: TCP
    targetPort: 80
    name: http
    nodePort: 30055
  selector:
    name: nginxdeploy
1
2
3
4
5
6
7
8
9
10
11
12
13
14

创建service

kubectl create -f nginx-service.yaml
1

查看

kubectl get svc
1

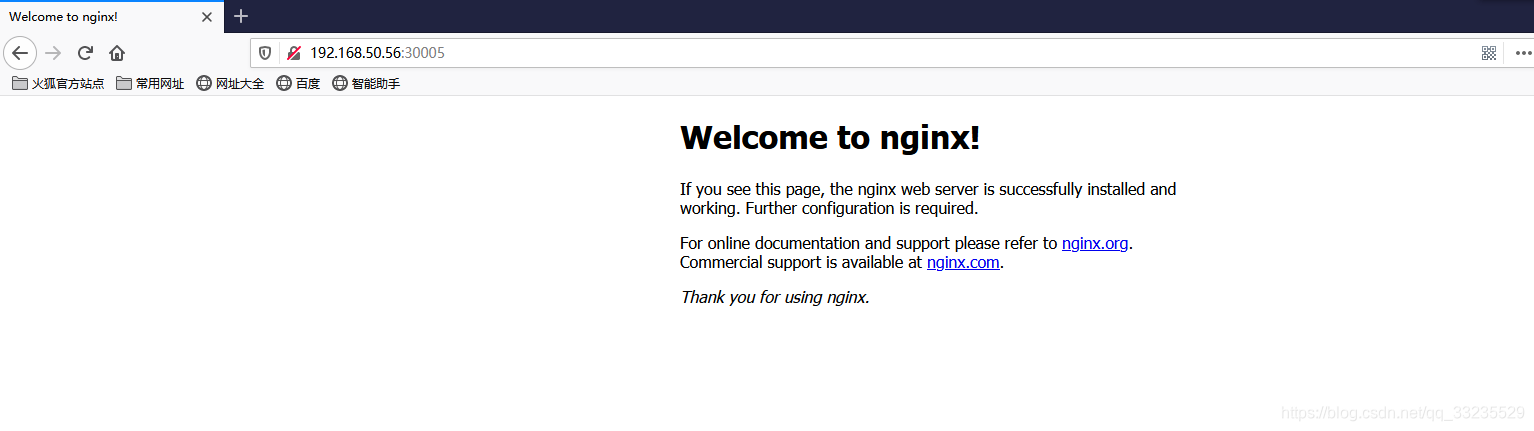

访问

• 任意节点IP+端口号


通过ingress暴露端口

安装ingress

• 编写ingress.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: nginx-ingress

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress
  namespace: nginx-ingress

---
apiVersion: v1
kind: Secret
metadata:
  name: default-server-secret
  namespace: nginx-ingress
type: Opaque
data:
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN2akNDQWFZQ0NRREFPRjl0THNhWFhEQU5CZ2txaGtpRzl3MEJBUXNGQURBaE1SOHdIUVlEVlFRRERCWk8KUjBsT1dFbHVaM0psYzNORGIyNTBjbTlzYkdWeU1CNFhEVEU0TURreE1qRTRNRE16TlZvWERUSXpNRGt4TVRFNApNRE16TlZvd0lURWZNQjBHQTFVRUF3d1dUa2RKVGxoSmJtZHlaWE56UTI5dWRISnZiR3hsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUwvN2hIUEtFWGRMdjNyaUM3QlBrMTNpWkt5eTlyQ08KR2xZUXYyK2EzUDF0azIrS3YwVGF5aGRCbDRrcnNUcTZzZm8vWUk1Y2Vhbkw4WGM3U1pyQkVRYm9EN2REbWs1Qgo4eDZLS2xHWU5IWlg0Rm5UZ0VPaStlM2ptTFFxRlBSY1kzVnNPazFFeUZBL0JnWlJVbkNHZUtGeERSN0tQdGhyCmtqSXVuektURXUyaDU4Tlp0S21ScUJHdDEwcTNRYzhZT3ExM2FnbmovUWRjc0ZYYTJnMjB1K1lYZDdoZ3krZksKWk4vVUkxQUQ0YzZyM1lma1ZWUmVHd1lxQVp1WXN2V0RKbW1GNWRwdEMzN011cDBPRUxVTExSakZJOTZXNXIwSAo1TmdPc25NWFJNV1hYVlpiNWRxT3R0SmRtS3FhZ25TZ1JQQVpQN2MwQjFQU2FqYzZjNGZRVXpNQ0F3RUFBVEFOCkJna3Foa2lHOXcwQkFRc0ZBQU9DQVFFQWpLb2tRdGRPcEsrTzhibWVPc3lySmdJSXJycVFVY2ZOUitjb0hZVUoKdGhrYnhITFMzR3VBTWI5dm15VExPY2xxeC9aYzJPblEwMEJCLzlTb0swcitFZ1U2UlVrRWtWcitTTFA3NTdUWgozZWI4dmdPdEduMS9ienM3bzNBaS9kclkrcUI5Q2k1S3lPc3FHTG1US2xFaUtOYkcyR1ZyTWxjS0ZYQU80YTY3Cklnc1hzYktNbTQwV1U3cG9mcGltU1ZmaXFSdkV5YmN3N0NYODF6cFErUyt1eHRYK2VBZ3V0NHh3VlI5d2IyVXYKelhuZk9HbWhWNThDd1dIQnNKa0kxNXhaa2VUWXdSN0diaEFMSkZUUkk3dkhvQXprTWIzbjAxQjQyWjNrN3RXNQpJUDFmTlpIOFUvOWxiUHNoT21FRFZkdjF5ZytVRVJxbStGSis2R0oxeFJGcGZnPT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  tls.key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdi91RWM4b1JkMHUvZXVJTHNFK1RYZUprckxMMnNJNGFWaEMvYjVyYy9XMlRiNHEvClJOcktGMEdYaVN1eE9ycXgrajlnamx4NXFjdnhkenRKbXNFUkJ1Z1B0ME9hVGtIekhvb3FVWmcwZGxmZ1dkT0EKUTZMNTdlT1l0Q29VOUZ4amRXdzZUVVRJVUQ4R0JsRlNjSVo0b1hFTkhzbysyR3VTTWk2Zk1wTVM3YUhudzFtMApxWkdvRWEzWFNyZEJ6eGc2clhkcUNlUDlCMXl3VmRyYURiUzc1aGQzdUdETDU4cGszOVFqVUFQaHpxdmRoK1JWClZGNGJCaW9CbTVpeTlZTW1hWVhsMm0wTGZzeTZuUTRRdFFzdEdNVWozcGJtdlFmazJBNnljeGRFeFpkZFZsdmwKMm82MjBsMllxcHFDZEtCRThCay90elFIVTlKcU56cHpoOUJUTXdJREFRQUJBb0lCQVFDZklHbXowOHhRVmorNwpLZnZJUXQwQ0YzR2MxNld6eDhVNml4MHg4Mm15d1kxUUNlL3BzWE9LZlRxT1h1SENyUlp5TnUvZ2IvUUQ4bUFOCmxOMjRZTWl0TWRJODg5TEZoTkp3QU5OODJDeTczckM5bzVvUDlkazAvYzRIbjAzSkVYNzZ5QjgzQm9rR1FvYksKMjhMNk0rdHUzUmFqNjd6Vmc2d2szaEhrU0pXSzBwV1YrSjdrUkRWYmhDYUZhNk5nMUZNRWxhTlozVDhhUUtyQgpDUDNDeEFTdjYxWTk5TEI4KzNXWVFIK3NYaTVGM01pYVNBZ1BkQUk3WEh1dXFET1lvMU5PL0JoSGt1aVg2QnRtCnorNTZud2pZMy8yUytSRmNBc3JMTnIwMDJZZi9oY0IraVlDNzVWYmcydVd6WTY3TWdOTGQ5VW9RU3BDRkYrVm4KM0cyUnhybnhBb0dCQU40U3M0ZVlPU2huMVpQQjdhTUZsY0k2RHR2S2ErTGZTTXFyY2pOZjJlSEpZNnhubmxKdgpGenpGL2RiVWVTbWxSekR0WkdlcXZXaHFISy9iTjIyeWJhOU1WMDlRQ0JFTk5jNmtWajJTVHpUWkJVbEx4QzYrCk93Z0wyZHhKendWelU0VC84ajdHalRUN05BZVpFS2FvRHFyRG5BYWkyaW5oZU1JVWZHRXFGKzJyQW9HQkFOMVAKK0tZL0lsS3RWRzRKSklQNzBjUis3RmpyeXJpY05iWCtQVzUvOXFHaWxnY2grZ3l4b25BWlBpd2NpeDN3QVpGdwpaZC96ZFB2aTBkWEppc1BSZjRMazg5b2pCUmpiRmRmc2l5UmJYbyt3TFU4NUhRU2NGMnN5aUFPaTVBRHdVU0FkCm45YWFweUNweEFkREtERHdObit3ZFhtaTZ0OHRpSFRkK3RoVDhkaVpBb0dCQUt6Wis1bG9OOTBtYlF4VVh5YUwKMjFSUm9tMGJjcndsTmVCaWNFSmlzaEhYa2xpSVVxZ3hSZklNM2hhUVRUcklKZENFaHFsV01aV0xPb2I2NTNyZgo3aFlMSXM1ZUtka3o0aFRVdnpldm9TMHVXcm9CV2xOVHlGanIrSWhKZnZUc0hpOGdsU3FkbXgySkJhZUFVWUNXCndNdlQ4NmNLclNyNkQrZG8wS05FZzFsL0FvR0FlMkFVdHVFbFNqLzBmRzgrV3hHc1RFV1JqclRNUzRSUjhRWXQKeXdjdFA4aDZxTGxKUTRCWGxQU05rMXZLTmtOUkxIb2pZT2pCQTViYjhibXNVU1BlV09NNENoaFJ4QnlHbmR2eAphYkJDRkFwY0IvbEg4d1R0alVZYlN5T294ZGt5OEp0ek90ajJhS0FiZHd6NlArWDZDODhjZmxYVFo5MWpYL3RMCjF3TmRKS2tDZ1lCbyt0UzB5TzJ2SWFmK2UwSkN5TGhzVDQ5cTN3Zis2QWVqWGx2WDJ1VnRYejN5QTZnbXo5aCsKcDNlK2JMRUxwb3B0WFhNdUFRR0xhUkcrYlNNcjR5dERYbE5ZSndUeThXczNKY3dlSTdqZVp2b0ZpbmNvVlVIMwphdmxoTUVCRGYxSjltSDB5cDBwWUNaS2ROdHNvZEZtQktzVEtQMjJhTmtsVVhCS3gyZzR6cFE9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-config
  namespace: nginx-ingress
data:
  server-names-hash-bucket-size: "1024"

---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: nginx-ingress
rules:
- apiGroups:
  - ""
  resources:
  - services
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - get
  - list
  - watch
  - update
  - create
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - list
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - extensions
  resources:
  - ingresses
  verbs:
  - list
  - watch
  - get
- apiGroups:
  - "extensions"
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - k8s.nginx.org
  resources:
  - virtualservers
  - virtualserverroutes
  verbs:
  - list
  - watch
  - get

---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: nginx-ingress
subjects:
- kind: ServiceAccount
  name: nginx-ingress
  namespace: nginx-ingress
roleRef:
  kind: ClusterRole
  name: nginx-ingress
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
  name: nginx-ingress
  namespace: nginx-ingress
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "9113"
spec:
  selector:
    matchLabels:
      app: nginx-ingress
  template:
    metadata:
      labels:
        app: nginx-ingress
    spec:
      hostNetwork: true
      serviceAccountName: nginx-ingress
      containers:
      - image: nginx/nginx-ingress
        name: nginx-ingress
        ports:
        - name: http
          containerPort: 80
          hostPort: 80
        - name: https
          containerPort: 443
          hostPort: 443
        - name: prometheus
          containerPort: 9113
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        args:
          - -nginx-configmaps=$(POD_NAMESPACE)/nginx-config
          - -default-server-tls-secret=$(POD_NAMESPACE)/default-server-secret
          - -enable-prometheus-metrics
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161

创建ingress

kubectl create -f ingress.yaml
1

解析一个域名到任意node节点，访问域名将得到一个404页面

创建nginx-service.yanl

apiVersion: v1
kind: Service
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  selector:
    app: nginx
  ports:
  - name: nginx
    protocol: TCP
    port: 80
    targetPort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13
14

kubectl create -f nginx-service.yaml
1

创建nginx-ingress.yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-ingress-for-nginx  # Ingress 的名字，仅用于标识
spec:
  rules:                      # Ingress 中定义 L7 路由规则
  - host: node   # 根据 virtual hostname 进行路由（使用自己的域名）
    http:
      paths:                  # 按路径进行路由
      - path: /
        backend:
          serviceName: nginx  # 指定后端的 Service 为之前创建的 nginx-service
          servicePort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13

kubectl create -f nginx-ingress.yaml
1

• 配置dns解析，在浏览器输入域名即可
