Darknet-YOLOv4训练步骤_darknet yolov4多卡训练

1、打开终端，克隆项目

git clone https://github.com/AlexeyAB/darknet.git
1

2、修改Makefile文件

其中，GPU和CUDNN是GPU加速，CUDNN_HALF是特定硬件加速，OPENCV是否使用OpenCV，AVX和OPENMP是CPU加速
1

opencv编译问题https://blog.csdn.net/qq_40297851/article/details/107031700

3、编译
cd darknet
make 或者 make -j8（加速编译）

4、制作数据集
制作数据集，进入桌面 “yolov4Detection/darknet”我们只需要对里面的“train_data”文件夹进行操作即可

image”和“xml”放到“train_data”里面，并把“data”里面的“predefined_classes.txt” 放到“train_data”里面，改为“voc.names”

打开“spilt_train_val.py”文件，将数据集划分为训练集以及验证集指定xml文件路径，以及生成的训练集和验证集txt文件保存路径
Ctrl + F5 运行，打开“train_data/main”

# coding:utf-8
import os
import random
import argparse

parser = argparse.ArgumentParser()
#xml文件的地址，根据自己的数据进行修改
parser.add_argument('--xml_path', default='/home/nx/Desktop/yolov4Detection/darknet/train_data1/xml', type=str, help='input xml label path')
#数据集的划分，根据自己的数据进行修改
parser.add_argument('--txt_path', default='/home/nx/Desktop/yolov4Detection/darknet/train_data1/main', type=str, help='output txt label path')
opt = parser.parse_args()

trainval_percent = 1.0
train_percent = 0.9
xmlfilepath = opt.xml_path
txtsavepath = opt.txt_path
total_xml = os.listdir(xmlfilepath)
if not os.path.exists(txtsavepath):
    os.makedirs(txtsavepath)

num = len(total_xml)
list_index = range(num)
tv = int(num * trainval_percent)
tr = int(tv * train_percent)
trainval = random.sample(list_index, tv)
train = random.sample(trainval, tr)

file_trainval = open(txtsavepath + '/trainval.txt', 'w')
file_test = open(txtsavepath + '/test.txt', 'w')
file_train = open(txtsavepath + '/train.txt', 'w')
file_val = open(txtsavepath + '/val.txt', 'w')

for i in list_index:
    name = total_xml[i][:-4] + '\n'
    if i in trainval:
        file_trainval.write(name)
        if i in train:
            file_train.write(name)
        else:
            file_val.write(name)
    else:
        file_test.write(name)

file_trainval.close()
file_train.close()
file_val.close()
file_test.close()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

打开“train.txt”和 “val.txt”，数据集划分完毕

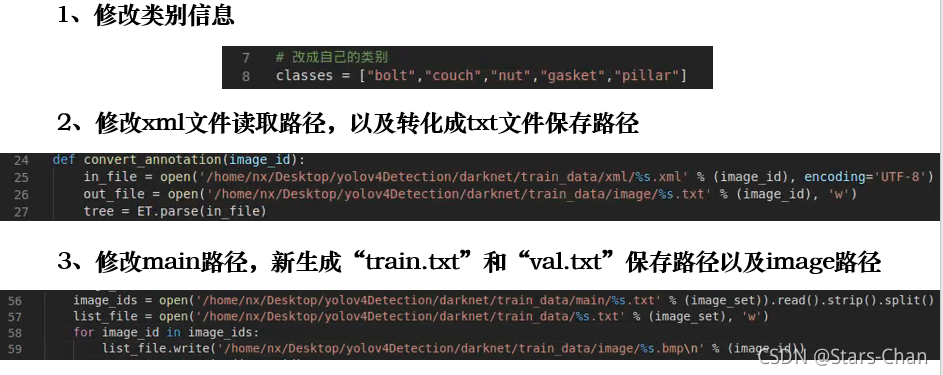

打开“voc_label.py”文件，将每个xml标注文件转换成txt格式，并把训练和验证图片的路径信息保存到“train_data”文件夹下的“train.txt”和“val.txt”需要修改以下路径

# -*- coding: utf-8 -*-
import xml.etree.ElementTree as ET
import os
from os import getcwd

sets = ['train', 'val', 'test']
# 改成自己的类别
# classes = ["bolt","couch","nut","gasket","pillar"]
classes = ["1","2","3","4","5","6","7","8","9"]

abs_path = os.getcwd()
def convert(size, box):
    dw = 1. / (size[0])
    dh = 1. / (size[1])
    x = (box[0] + box[1]) / 2.0 - 1
    y = (box[2] + box[3]) / 2.0 - 1
    w = box[1] - box[0]
    h = box[3] - box[2]
    x = x * dw
    w = w * dw
    y = y * dh
    h = h * dh
    return x, y, w, h

def convert_annotation(image_id):
    in_file = open('/home/nx/Desktop/yolov4Detection/darknet/train_data1/xml/%s.xml' % (image_id), encoding='UTF-8')
    out_file = open('/home/nx/Desktop/yolov4Detection/darknet/train_data1/image/%s.txt' % (image_id), 'w')
    tree = ET.parse(in_file)
    root = tree.getroot()
    size = root.find('size')
    w = int(size.find('width').text)
    h = int(size.find('height').text)
    for obj in root.iter('object'):

        difficult = obj.find('difficult').text
        #difficult = obj.find('Difficult').text
        cls = obj.find('name').text
        if cls not in classes or int(difficult) == 1:
            continue
        cls_id = classes.index(cls)

        xmlbox = obj.find('bndbox')
        b = (float(xmlbox.find('xmin').text), float(xmlbox.find('xmax').text), float(xmlbox.find('ymin').text),
             float(xmlbox.find('ymax').text))
        b1, b2, b3, b4 = b
        # 标注越界修正
        if b2 > w:
            b2 = w
        if b4 > h:
            b4 = h
        b = (b1, b2, b3, b4)
        bb = convert((w, h), b)
        out_file.write(str(cls_id) + " " + " ".join([str(a) for a in bb]) + '\n')

wd = getcwd()
for image_set in sets:
    image_ids = open('/home/nx/Desktop/yolov4Detection/darknet/train_data1/main/%s.txt' % (image_set)).read().strip().split()
    list_file = open('/home/nx/Desktop/yolov4Detection/darknet/train_data1/%s.txt' % (image_set), 'w')
    for image_id in image_ids:
        list_file.write('/home/nx/Desktop/yolov4Detection/darknet/train_data1/image/%s.png\n' % (image_id))
        convert_annotation(image_id)
    list_file.close()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

Ctrl + F5 运行，打开“train_data”

打开“train.txt”、“val.txt”，确认图片路径没问题

打开“image”文件夹，打开txt文件，确认标注信息转换正确

6、设置训练参数
打开train_data文件夹下的“voc.data”
修改类别数目为：5
修改train.txt、val.txt、voc.names文件路径
修改训练生成模型保存路径backup

需要把“yolov4-tiny.cfg”里面的classes、filter进行修改
Ctrl + F，查找“classes”修改为5，共两处
并把上方的filter修改为（classes+5）*3 = 30

7、开始训练
在“darknet”文件夹下，右键，打开“Open in Terminal”

输入下面命令，回车，开始训练

./darknet detector train train_data/voc.data train_data/yolov4.cfg train_data/yolov4.conv.137 -gpus -map

# 评估，比较最后一行，选mAP (mean average precision) 最大的 ，或者IoU(intersect over union)最好的
./darknet detector map data/VOC.data yolo-obj.cfg backup\yolo-obj_6000.weights
