C++实践（四）：C++实现AES-CMAC算法

作者：代码秘术家 | 2024-01-31 19:53:58

踩

aes-cmac算法

AES-CMAC

AES-CMAC使用了高级加密标准作为组分。为了产生一个消息认证码，CMAC需要一个密钥，消息message及消息的长度length作为输入，输出是消息认证码。

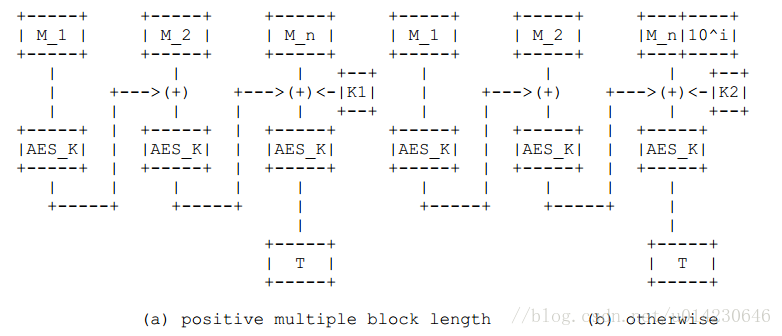

AES-CMAC的核心是CBC-MAC。对于待加密消息M，应用CBC-MAC算法。在CMAC操作中有两种情况：
如果输入消息长度等于Block的整数倍，最后的Block M_n需要先于K1异或再进行处理；
如果输入的消息长度不等于Block的整数倍，最后的Block M_n需要补齐到一个Block的大小，与K2异或，再进行处理。上一次处理的结果将成为下一次处理的输入。
这里写图片描述
子密钥生成算法:
输入密钥K，输出子密钥K1与K2。过程如下：
①用密钥K对全零输入块加密得到L
②K1通过如下方式导出：
如果L的最高有效位为0，则K1：=L左移1位；否则，K1等于const_Rb与左移1位的L异或。
③K2通过如下方式导出：
如果K1的最高有效位为0，则K2：=K1左移1位；否则，K2等于const_Rb与左移1位的K1异或。

AES-CMAC算法实现与测试

根据参考文献[1]javafr_RFC_4493给出的说明及测试实例，编写AES_CMAC类。在main()函数中加入取消注释宏定义AES_CMAC_TEST，进行AES-CMAC测试。
待测试消息是：
M= 0x6b, 0xc1, 0xbe, 0xe2, 0x2e, 0x40, 0x9f, 0x96,
0xe9, 0x3d, 0x7e, 0x11, 0x73, 0x93, 0x17, 0x2a,
0xae, 0x2d, 0x8a, 0x57, 0x1e, 0x03, 0xac, 0x9c,
0x9e, 0xb7, 0x6f, 0xac, 0x45, 0xaf, 0x8e, 0x51,
0x30, 0xc8, 0x1c, 0x46, 0xa3, 0x5c, 0xe4, 0x11,
0xe5, 0xfb, 0xc1, 0x19, 0x1a, 0x0a, 0x52, 0xef,
0xf6, 0x9f, 0x24, 0x45, 0xdf, 0x4f, 0x9b, 0x17,
0xad, 0x2b, 0x41, 0x7b, 0xe6, 0x6c, 0x37, 0x10

密钥是：
K= 0x2b, 0x7e, 0x15, 0x16, 0x28, 0xae, 0xd2, 0xa6,
0xab, 0xf7, 0x15, 0x88, 0x09, 0xcf, 0x4f, 0x3c

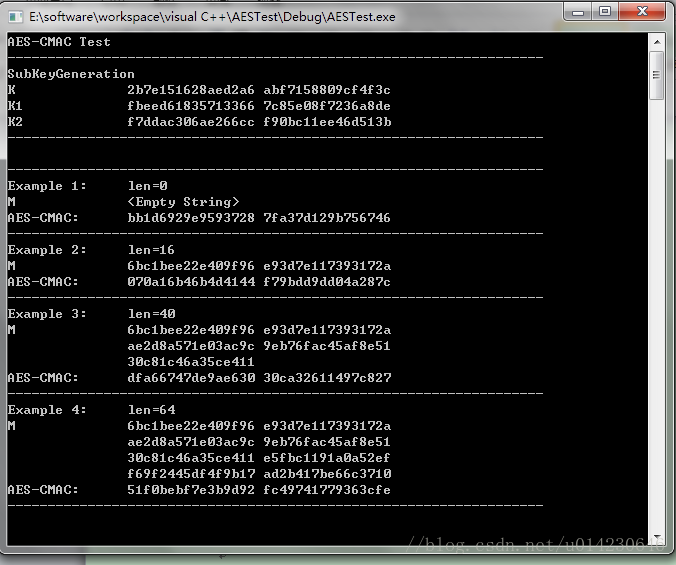

注意，测试中我们不是把M作为输入，而是截取其一部分作为输入消息，以测试AES_CMAC类处理不同长度的消息的正确性。测试结果如图：
这里写图片描述

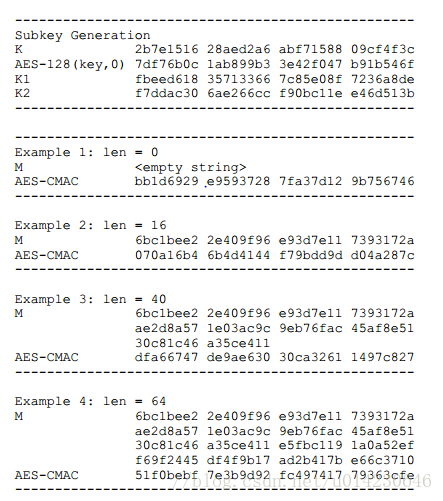

对照参考文献[1]：
这里写图片描述
结果符合预期。
aes_cmac.h:

/************************************************************************/
/*AES_CMAC：     Use AES-128
/*Author:       chenweiliang
/*Version:      1.0
/*Reference:    javafr_RFC_4493
/************************************************************************/
#pragma once
#include "aes.h"

class AES_CMAC
{
public:
    //key:  128-bit key
    AES_CMAC(const byte key[]);

    virtual ~AES_CMAC();
    static const byte const_Rb[16];
    static const byte const_Zero[16];

    //msg:  message to be authenticated
    //len:  length of the message in bytes
    //mac:  message authentication code
    void getCMAC(byte *msg, int len, byte *mac);

    //Copy K1 to key1
    void getK1(byte *key1);

    //copy K2 to key2
    void getK2(byte *key2);

protected:
private:
    AES mAes_128;
    //128-bit key
    byte mK[16];
    //128-bit first subkey
    byte mK1[16];
    //128-bit second subkey
    byte mK2[16];

    //Utils function
    void leftShiftOneBit(byte *input_128,byte *output_128);
    void xor128(const byte *a, const byte *b, byte *out);

    void generateSubKey();
    //lastb:    last block of the intput message
    //pad:      last block after padding
    //length:   length of last block before padding
    void padding(byte *lastb,byte *pad,int length);

};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

aes_cmac.cpp:

/************************************************************************/
/*AES_CMAC：     Use AES-128
/*Author:       chenweiliang
/*Version:      1.0
/*Reference:    javafr_RFC_4493
/************************************************************************/
#include "aes_cmac.h"

const byte AES_CMAC::const_Rb[16] = {
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x87
};

const byte AES_CMAC::const_Zero[16] = {
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00,
};

void AES_CMAC::leftShiftOneBit(byte *input_128, byte *output_128)
{
    byte overflow = 0x00;
    for (int i = 15; i >= 0; i--){
        output_128[i] = input_128[i] << 1;
        output_128[i] |= overflow;
        overflow = (input_128[i] & 0x80) ? 0x01 : 0x00;
    }
    return;
}

void AES_CMAC::xor128(const byte *a, const byte *b, byte *out)
{
    for (int i = 0; i < 16; i++){
        out[i] = a[i] ^ b[i];
    }
}

AES_CMAC::AES_CMAC(const byte key[])
{
    for (int i = 0; i < 16; i++){
        mK[i] = key[i];
    }
    mAes_128 = AES(mK,KEYLENGTH::KEY_LENGTH_16BYTES);

    generateSubKey();
}

void AES_CMAC::generateSubKey()
{
    //for output of AES-128 applied to 0^128
    byte L[16];
    //0^128
    byte Z[16];

    byte temp[16];

    for (int i = 0; i < 16; i++){
        Z[i] = 0;
    }

    mAes_128.encrypt(Z,L);
    //If MSB(L)==0,then mK1=L<<1
    if ((L[0] & 0x80) == 0){
        leftShiftOneBit(L, mK1);
    }
    //mK1=(L<<1)xor(Rb)
    else{
        leftShiftOneBit(L, temp);
        xor128(temp, const_Rb, mK1);
    }

    if ((mK1[0] & 0x80) == 0){
        leftShiftOneBit(mK1, mK2);
    }
    else{
        leftShiftOneBit(mK1, temp);
        xor128(temp, const_Rb, mK2);
    }
    return;
}

void AES_CMAC::padding(byte *lastb, byte *pad, int length)
{
    for (int i = 0; i < 16; i++){
        if (i < length){
            pad[i] = lastb[i];
        }
        else if (i == length){
            pad[i] = 0x80;
        }
        else{
            pad[i] = 0x00;
        }
    }
}

void AES_CMAC::getCMAC(byte *msg, int len, byte *mac)
{
    byte X[16];
    byte Y[16];
    byte msgLast[16];

    byte padded[16];

    //the number of blocks to be processed
    int n;
    //the number of bytes of the last block
    int r;
    //denoting last block is complete or not
    bool isComplete;

    n = (len + 15) / 16;

    if (n == 0){
        n = 1;
        isComplete = false;
    }
    else{
        if ((len % 16) == 0){
            isComplete = true;
        }
        else{
            isComplete = false;
        }
    }

    if (isComplete){
        xor128(&msg[16*(n-1)], mK1, msgLast);
    }
    else{
        padding(&msg[16*(n-1)], padded, len%16);
        xor128(padded, mK2, msgLast);
    }

    for (int i = 0; i < 16; i++){
        X[i] = 0;
    }
    for (int i = 0; i < n - 1; i++){
        //Y=(X)xor(meg_i)
        xor128(X, &msg[16 * i], Y);
        //X=AES(key,Y)
        mAes_128.encrypt(Y, X);
    }

    xor128(X, msgLast, Y);
    mAes_128.encrypt(Y, X);

    for (int i = 0; i < 16; i++){
        mac[i] = X[i];
    }

}

void AES_CMAC::getK1(byte *key1)
{
    for (int i = 0; i < 16; i++){
        key1[i] = mK1[i];
    }
}

void AES_CMAC::getK2(byte *key2)
{
    for (int i = 0; i < 16; i++){
        key2[i] = mK2[i];
    }
}

AES_CMAC::~AES_CMAC()
{

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175

main函数：

/************************************************************************/
/*Main：         Test AES,CMAC
/*Author:       chenweiliang
/*Version:      1.0
/*Note:         To test AES-128,please comment the macro definition
/*              "#define AES_CMAC_TEST" and uncomment it for CMAC testing
/************************************************************************/

#include "aes.h"
#include "aes_cmac.h"
#ifndef AES_CMAC_TEST
#define AES_CMAC_TEST
#endif // !AES_CMAC_TEST


#include <string>
void print128(unsigned char state[16]){
    for (int i = 0; i < 16; i++){
        printf("%02hhx", state[i]);
        if (i % 8 == 7){
            printf(" ");
        }
    }
    printf("\n");
}

void print512(unsigned char data[64]){
    for (int i = 0; i < 64; i++){
        printf("%02hhx", data[i]);
        if (i % 8 == 7){
            printf(" ");
        }
        if (i % 32 == 31){
            printf("\n");
        }
    }
    printf("\n");
}

void printn(unsigned char data[], int n)
{
    for (int i = 0; i < n; i++){
        printf("%02hhx", data[i]);
        if (i % 8 == 7){
            printf(" ");
        }
        if (i % 16 ==15&&i!=n-1){
            printf("\n               ");
        }
        else if (i == n - 1){
            printf("\n");
        }
    }
}

using namespace std;
int main()
{

#ifdef AES_CMAC_TEST

    unsigned char K1[16], K2[16], mac[16], TT[12];
    unsigned char M[64] = {
        0x6b, 0xc1, 0xbe, 0xe2, 0x2e, 0x40, 0x9f, 0x96,
        0xe9, 0x3d, 0x7e, 0x11, 0x73, 0x93, 0x17, 0x2a,
        0xae, 0x2d, 0x8a, 0x57, 0x1e, 0x03, 0xac, 0x9c,
        0x9e, 0xb7, 0x6f, 0xac, 0x45, 0xaf, 0x8e, 0x51,
        0x30, 0xc8, 0x1c, 0x46, 0xa3, 0x5c, 0xe4, 0x11,
        0xe5, 0xfb, 0xc1, 0x19, 0x1a, 0x0a, 0x52, 0xef,
        0xf6, 0x9f, 0x24, 0x45, 0xdf, 0x4f, 0x9b, 0x17,
        0xad, 0x2b, 0x41, 0x7b, 0xe6, 0x6c, 0x37, 0x10
    };
    unsigned char key[16] = {
        0x2b, 0x7e, 0x15, 0x16, 0x28, 0xae, 0xd2, 0xa6,
        0xab, 0xf7, 0x15, 0x88, 0x09, 0xcf, 0x4f, 0x3c
    };

    AES_CMAC aes_cmac = AES_CMAC(key);

    printf("AES-CMAC Test\n");
    printf("-------------------------------------------------------------------\n");
    printf("SubKeyGeneration\n");
    printf("K              ");
    print128(key);
    printf("K1             ");
    aes_cmac.getK1(K1);
    print128(K1);
    printf("K2             ");
    aes_cmac.getK2(K2);
    print128(K2);
    printf("-------------------------------------------------------------------\n");
    printf("\n-------------------------------------------------------------------\n");
    aes_cmac.getCMAC(M, 0, mac);
    printf("Example 1:     len=0\n");
    printf("M              <Empty String>\n");
    printf("AES-CMAC:      ");
    print128(mac);
    printf("-------------------------------------------------------------------\n");

    aes_cmac.getCMAC(M, 16, mac);
    printf("Example 2:     len=16\n");
    printf("M              ");
    printn(M, 16);
    printf("AES-CMAC:      ");
    print128(mac);
    printf("-------------------------------------------------------------------\n");
    aes_cmac.getCMAC(M, 40, mac);
    printf("Example 3:     len=40\n");
    printf("M              ");
    printn(M, 40);
    printf("AES-CMAC:      ");
    print128(mac);
    printf("-------------------------------------------------------------------\n");
    aes_cmac.getCMAC(M, 64, mac);
    printf("Example 4:     len=64\n");
    printf("M              ");
    printn(M, 64);
    printf("AES-CMAC:      ");
    print128(mac);
    printf("-------------------------------------------------------------------\n");
#else
    unsigned char input[16] =
    {
    0x01, 0x23, 0x45, 0x67,
    0x89, 0xab, 0xcd, 0xef,
    0xfe, 0xdc, 0xba, 0x98,
    0x76, 0x54, 0x32, 0x10
    };
    unsigned char key[] =
    {
    0x0f, 0x15, 0x71, 0xc9,
    0x47, 0xd9, 0xe8, 0x59,
    0x0c, 0xb7, 0xad, 0xd6,
    0xaf, 0x7f, 0x67, 0x98
    };
    printf("AES Test\n");
    AES aes = AES(key, KEYLENGTH::KEY_LENGTH_16BYTES);
    printf("Key length:          128\n");
    printf("key:                 ");
    print128(key);
    printf("Message:             ");
    print128(input);
    byte out[16];
    aes.encrypt(input, out);
    printf("ciphertext:          ");
    print128(out);
    aes.decrypt(out,out);
    printf("plaintext:           ");
    print128(out);


#endif // AES_CMAC_TEST

    return 0;
}
