go mqtt(嵌入式arm设备)接入物联网平台

#1、设备
任意能跑linux的设备。
当前设备:imx6 内存>=128m 容量>=128m
#2、平台
华为云平台
设备接入服务，开发者中心
#3、设备注册

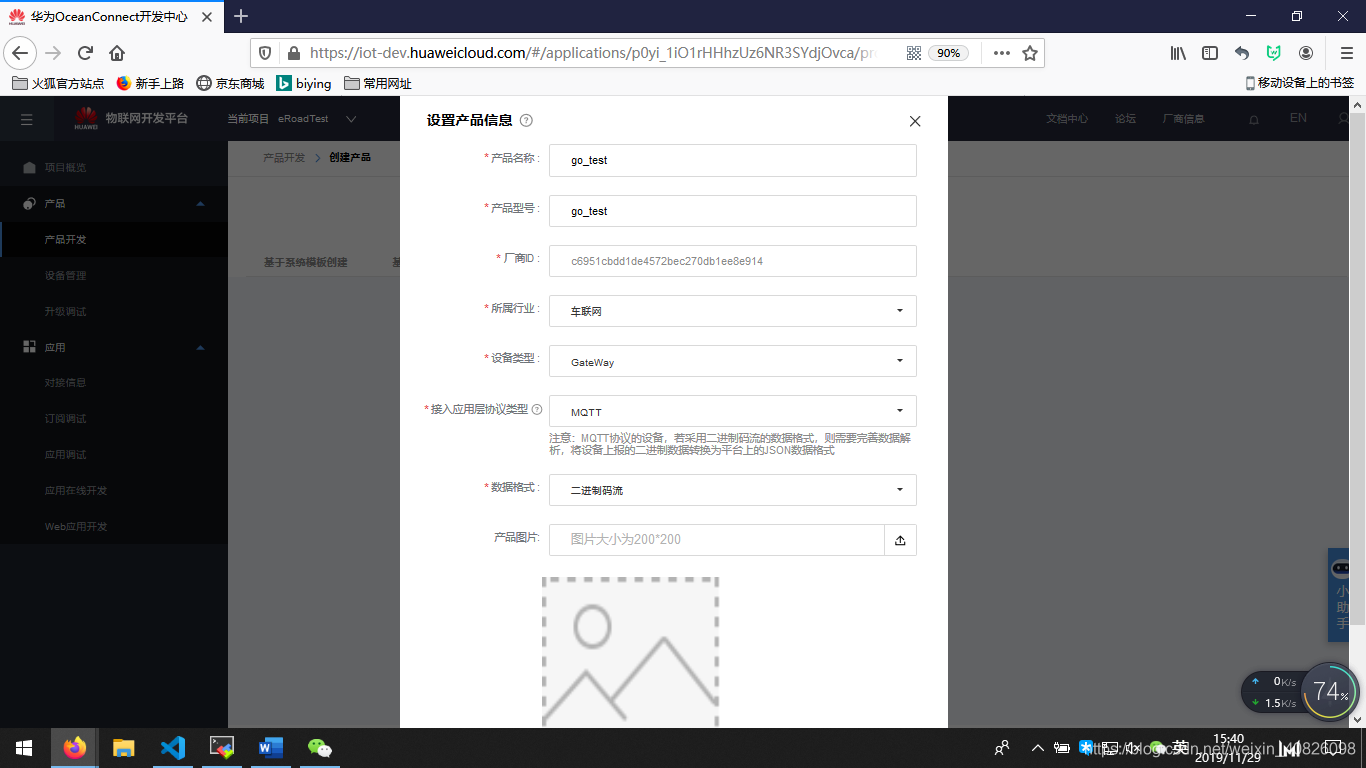

##1、添加产品
选择添加自定义产品

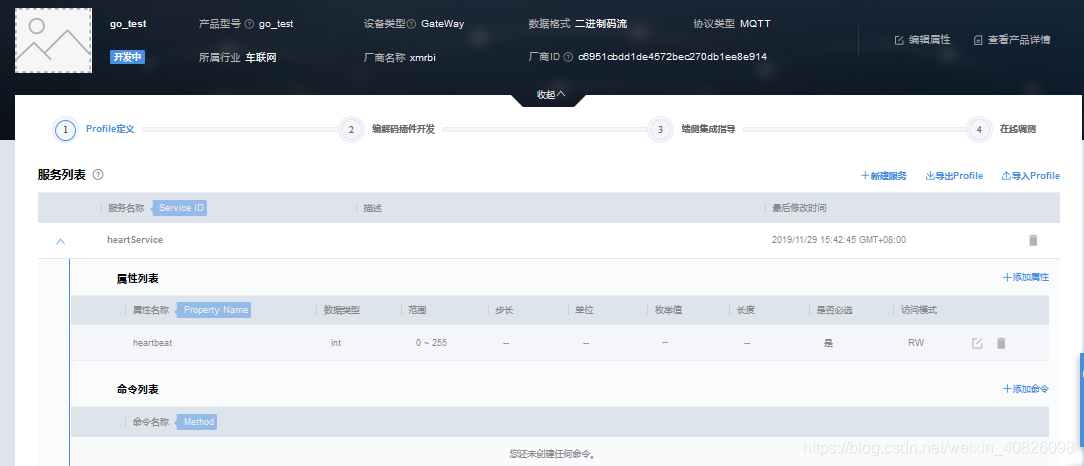

##2、添加profile定义，插件

#4、注册设备
用官方工具计算出clientid等等连接参数
#5、编写代码
##5.1、主函数

// main
package main

import (
	"fmt"
	"sync"

	"time"

	"./user_mqtt"
	//"./user_nanomsg"
	"./utils"
	mqtt "github.com/eclipse/paho.mqtt.golang"
)

type ConfigRead struct {
	sslUrl   string //
	clientId string
	userName string
	passWord string
	pemAdd   string //证书地址

	pubAdd string
	subAdd string
}

//初始化一些变量
var readMsg ConfigRead
//var internalCommunication user_nanomsg.Nanomsg = new(user_nanomsg.NanomsgOptions)
var device1 user_mqtt.DeviceMsg = new(user_mqtt.DeviceMsgOptions)

//var handler *user_nanomsg.NanomsgOptions
func onReceived(client mqtt.Client, message mqtt.Message) {
	fmt.Printf("Receive topic: %s,  payload: %x \n", message.Topic(), string(message.Payload()))
	//internalCommunication.PairSocketSend([]byte(message.Payload()))
}

// pub客户端与服务端断连后，触发重连机制
func onPubConnectionLost(client mqtt.Client, err error) {
	fmt.Println("on pub connect lost, try to reconnect")
	user_mqtt.LoopConnect(client)
	client.Subscribe(readMsg.subAdd, 0, onReceived)
}

//读取INI配置文件
func InitConfigRead(o *ConfigRead) bool {
	ini_parser := utils.IniParser{}
	conf_file_name := "/my-demo/mqtt/init.ini"
	if err := ini_parser.Load(conf_file_name); err != nil {
		conf_file_name = "./init.ini"
		if err := ini_parser.Load(conf_file_name); err != nil {
			//fmt.Printf("try load config file[%s] error[%s]\n", conf_file_name, err.Error())
			return false
		}
		//return
	}

	o.sslUrl = ini_parser.GetString("connect_sect", "SslUrl")
	o.clientId = ini_parser.GetString("connect_sect", "ClientId")
	o.userName = ini_parser.GetString("connect_sect", "UserName")
	o.passWord = ini_parser.GetString("connect_sect", "PassWord")
	o.pemAdd = ini_parser.GetString("pem_sect", "Pemaddr")

	o.pubAdd = "/huawei/v1/devices/" + readMsg.userName + "/data/binary"
	o.subAdd = "/huawei/v1/devices/" + readMsg.userName + "/command/binary"
	return true
}

//初始化外部通信
func InitMQTTCommunication() bool {
	var ret bool

	if ret = device1.GetPemTlsConfig(readMsg.pemAdd); ret == false {
		fmt.Println("GetPemTlsConfig is error")
		return false
	}

	device1.SettingConnectMsg(readMsg.sslUrl, readMsg.clientId, readMsg.userName, readMsg.passWord)

	device1.SettingPubaddr(readMsg.pubAdd)
	device1.SettingSubaddr(readMsg.subAdd)

	device1.SettingLostCallback(onPubConnectionLost)
	device1.SettingRecCallback(onReceived)

	if ret = device1.StartConnect(); ret == false {
		fmt.Println("StartConnect is error")
		return false
	}

	return true
}

func main() {

	//初始化配置项
	if InitConfigRead(&readMsg) == false {
		fmt.Println("InitConfigRead is error!")
		return
	}

	if InitMQTTCommunication() == false {
		fmt.Println("InitMQTTCommunication is error!!")
		return
	}

	wait := sync.WaitGroup{}
	wait.Add(1)

	pubmsg := []byte{0x00, 0x01}

	go func() {
		for {
			time.Sleep(10 * time.Second)
			device1.PublishMsg(pubmsg)
			//fmt.Println("PublishMsg:%x!!", pubmsg)
		}
	}()

	wait.Wait()
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121

##5.2、连接模块代码

package user_mqtt

import (
	"crypto/tls"
	"crypto/x509"
	"io/ioutil"
	"time"

	"fmt"
	//"sync"

	mqtt "github.com/eclipse/paho.mqtt.golang"
)

type DeviceMsg interface {
	GetPemTlsConfig(string) bool                      //获取pem加密
	SettingConnectMsg(string, string, string, string) //设置连接的参数
	SettingPubaddr(string)
	SettingSubaddr(string)
	SettingLostCallback(func(mqtt.Client, error))
	SettingRecCallback(func(mqtt.Client, mqtt.Message))

	StartConnect() bool
	PublishMsg(interface{}) bool                      //上报数据到发布的地址
}

type DeviceMsgOptions struct {
	sslUrl   string //
	clientId string
	userName string
	passWord string

	pubAdd string
	subAdd string

	pemAdd string //证书地址

	Tlsconfig    *tls.Config
	Mqtthandler  mqtt.Client
	LostCallback func(mqtt.Client, error)
	RecCallback  func(mqtt.Client, mqtt.Message)
}

//获取pem加密
func (o *DeviceMsgOptions) GetPemTlsConfig(filename string) bool {
	o.pemAdd = filename
	caCert, err := ioutil.ReadFile(o.pemAdd)
	if err != nil {
		return false
	}
	caCertPool := x509.NewCertPool()
	caCertPool.AppendCertsFromPEM(caCert)

	// Create the TLS Config with the CA pool and enable Client certificate validation
	tlsConfig := &tls.Config{
		ClientCAs:  caCertPool,
		ClientAuth: tls.RequireAndVerifyClientCert,
		// 单向认证，client不校验服务端证书
		InsecureSkipVerify: true,
	}
	o.Tlsconfig = tlsConfig
	return true
}

//设置连接需要的参数
func (o *DeviceMsgOptions) SettingConnectMsg(sslurl string, clientId string, userName string, passWord string) {
	o.sslUrl = sslurl
	o.clientId = clientId
	o.userName = userName
	o.passWord = passWord
}

//上报数据到订阅的地址
func (o *DeviceMsgOptions) PublishMsg(payload interface{}) bool {

	if len(o.pubAdd) == 0 {
		return false
	}

	o.Mqtthandler.Publish(o.pubAdd, 0, false, payload)
	return true
}

//设置发布的地址
func (o *DeviceMsgOptions) SettingPubaddr(pubadd string) {
	o.pubAdd = pubadd
}

//设置订阅的地址的地址
func (o *DeviceMsgOptions) SettingSubaddr(subadd string) {
	o.subAdd = subadd
}

//设置断开触发的程序
func (o *DeviceMsgOptions) SettingLostCallback(callback func(mqtt.Client, error)) {
	o.LostCallback = callback
}

//设置接收触发的程序
func (o *DeviceMsgOptions) SettingRecCallback(callback func(mqtt.Client, mqtt.Message)) {
	o.RecCallback = callback
}

//初始化服务器
func (o *DeviceMsgOptions) StartConnect() bool {
	if len(o.sslUrl) == 0 || len(o.clientId) == 0 || len(o.userName) == 0 || len(o.passWord) == 0 {
		return false
	}
	opts := mqtt.NewClientOptions().AddBroker(o.sslUrl)
	opts.SetClientID(o.clientId)
	opts.SetUsername(o.userName)
	opts.SetPassword(o.passWord)
	opts.SetProtocolVersion(4)

	if len(o.pemAdd) == 0 {
		return false
	}

	opts.SetTLSConfig(o.Tlsconfig)

	opts.OnConnect = onConnect
	opts.AutoReconnect = false
	// 回调函数，客户端与服务端断连后立刻被触发
	opts.OnConnectionLost = o.LostCallback
	o.Mqtthandler = mqtt.NewClient(opts)
	LoopConnect(o.Mqtthandler)

	o.Mqtthandler.Subscribe(o.subAdd, 0, o.RecCallback)
	return true
}

//连接成功调用
func onConnect(client mqtt.Client) {
	fmt.Println("on connect")
}

//检查是否连接
func CheckClientToken(token mqtt.Token) (bool, error) {
	if token.Wait() && token.Error() != nil {
		return false, token.Error()
	}
	return true, nil
}

//断开立即调用
func LoopConnect(client mqtt.Client) {
	for {
		token := client.Connect()
		if rs, err := CheckClientToken(token); !rs {
			fmt.Printf("connect error: %s\n", err.Error())
		} else {
			break
		}
		time.Sleep(1 * time.Second)
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157

##5.3、配置文件读取代码

package utils

import (
    "gopkg.in/ini.v1"
)

type IniParser struct {
    conf_reader *ini.File // config reader
}

type IniParserError struct {
    error_info string
}

func (e *IniParserError) Error() string { return e.error_info }

func (this *IniParser) Load(config_file_name string) error {
    conf, err := ini.Load(config_file_name)
    if err != nil {
        this.conf_reader = nil
        return err
    }
    this.conf_reader = conf
    return nil
}

func (this *IniParser) GetString(section string, key string) string {
    if this.conf_reader == nil {
        return ""
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return ""
    }

    return s.Key(key).String()
}

func (this *IniParser) GetInt32(section string, key string) int32 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_int, _ := s.Key(key).Int()

    return int32(value_int)
}

func (this *IniParser) GetUint32(section string, key string) uint32 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_int, _ := s.Key(key).Uint()

    return uint32(value_int)
}

func (this *IniParser) GetInt64(section string, key string) int64 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_int, _ := s.Key(key).Int64()
    return value_int
}

func (this *IniParser) GetUint64(section string, key string) uint64 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_int, _ := s.Key(key).Uint64()
    return value_int
}

func (this *IniParser) GetFloat32(section string, key string) float32 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_float, _ := s.Key(key).Float64()
    return float32(value_float)
}

func (this *IniParser) GetFloat64(section string, key string) float64 {
    if this.conf_reader == nil {
        return 0
    }

    s := this.conf_reader.Section(section)
    if s == nil {
        return 0
    }

    value_float, _ := s.Key(key).Float64()
    return value_float
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124

#6、运行代码


#7、交叉编译
gox -os “linux” -arch arm
传到开发板上运行
